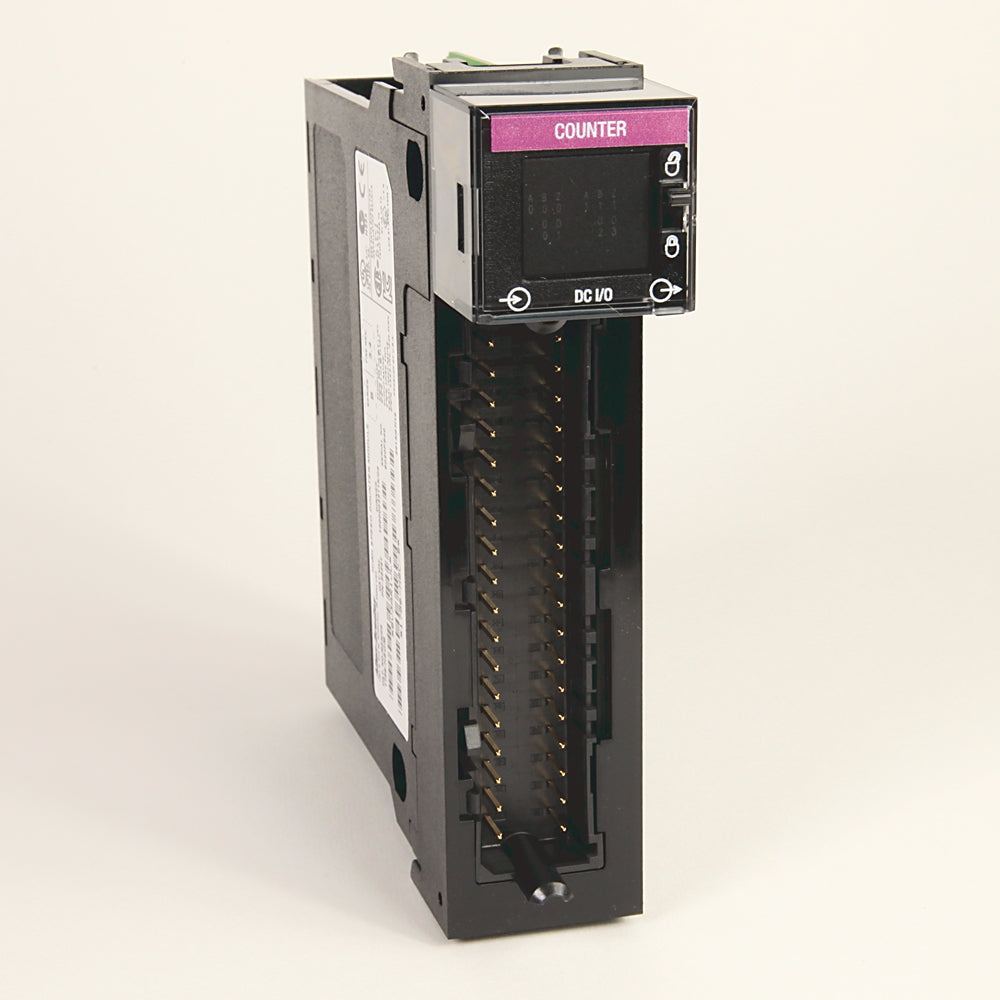

2 Channel / 4 Output High Speed Counter (36 Pin)
Brand: Allen-Bradley / Rockwell Automation | Series: | Category: ControlLogix | Lifecycle: Active
| Conducted RF immunity | 10V rms with 1 kHz sine wave 80% AM from 150 kHz...80 MHz on shielded signal ports |
| Counter, max | 1 mhz |
| Counting frequency, max | 1000 khz |
| Count range | 0...16, 777, 214 |
| Current draw | 300mA @ 5.1V, 3mA @ 24V |
| Current limit | \u003c4 A |
| Debounce filter, max | 70 Hz |
| Digital inputs configurable | true |
| Digital outputs configurable | false |
| EFT/B immunity | ±4kV @ 5kHz on power ports, ±4kV @ 5kHz on signal ports |
| Emissions | IEC 61000-6-4 |
| Enclosure type | None (open-style) |
| Encoder, max | 250 khz |
| ESD immunity | 6 kV contact discharges, 8 kV air discharges |
| Input current, min | 4 mA |
| Input current, nom | 15 mA |
| Input frequency, max | 1 MHz in counter modes (A input), 500 kHz in rate measurement mode (A input), 250 kHz in encoder mode (A/B inputs, X1 or X4), 70 Hz with filter enabled |
| Inputs per counter | 3 (A, B, Z for gate/reset) |
| Isolation voltage | 125V (continuous), basic insulation type, input group-to-backplane, 30V (continuous), basic insulation type, input group-to-input group |
| Load current per point, min | 5V ops: 3mA @ 12/24V ops: 40 mA |
