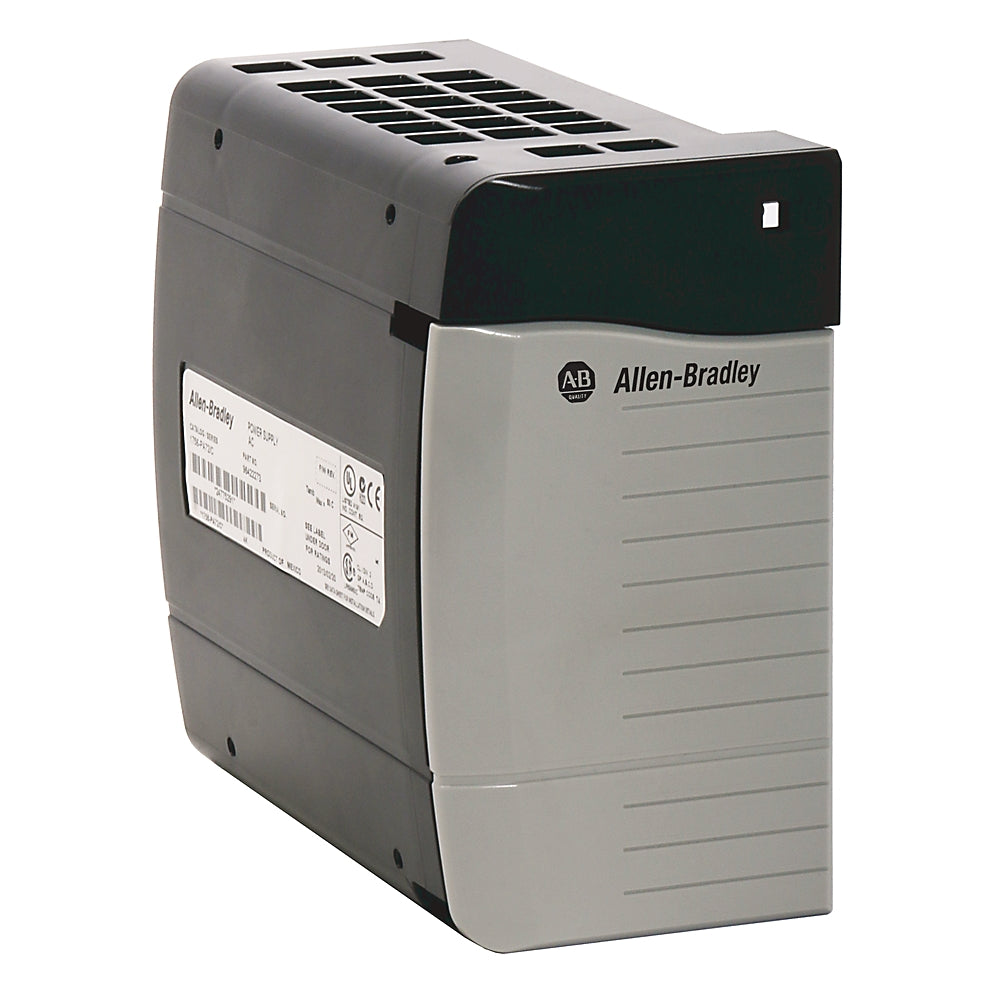

ControlLogix DC Power Supply

ControlLogix DC Power Supply

$0.00 USD
$0.00 USD
Sale Sold out
Shipping calculated at checkout.

Catalog #: 1756-PB50K

Type of voltage (input voltage) DC
Power output 60 W
Output voltage at DC 5.1 V
Input voltage at DC 18 V
Input voltage, nom 24V DC
Inrush current, max 30 A
Input power, max 85 W @ 50 °C (122 °F), 70 W @ 60 °C (140 °F)
Current capacity 8A @ 50°C (122 °F) @ 5.1V DC @ 6A @ 60 °C (140 °F) @ 5.1V DC
Power output, max 60 W @ 0...50 °C (32...122 °F), 50 W @ 0...60 °C (32...140 °F)
Wire category 1 - on power ports
Hold-up time 30 ms @ 18...32V DC, 60 W, 40 ms @ 18...32V DC, 50 W
Wire size 2.5 mm² (14 AWG) solid or stranded copper wire rated at 90 °C (194 °F), or greater, 1.2 mm (3/64 in.) insulation max
Suitable for safety functions False
Type of output voltage DC
Redundancy capable False
