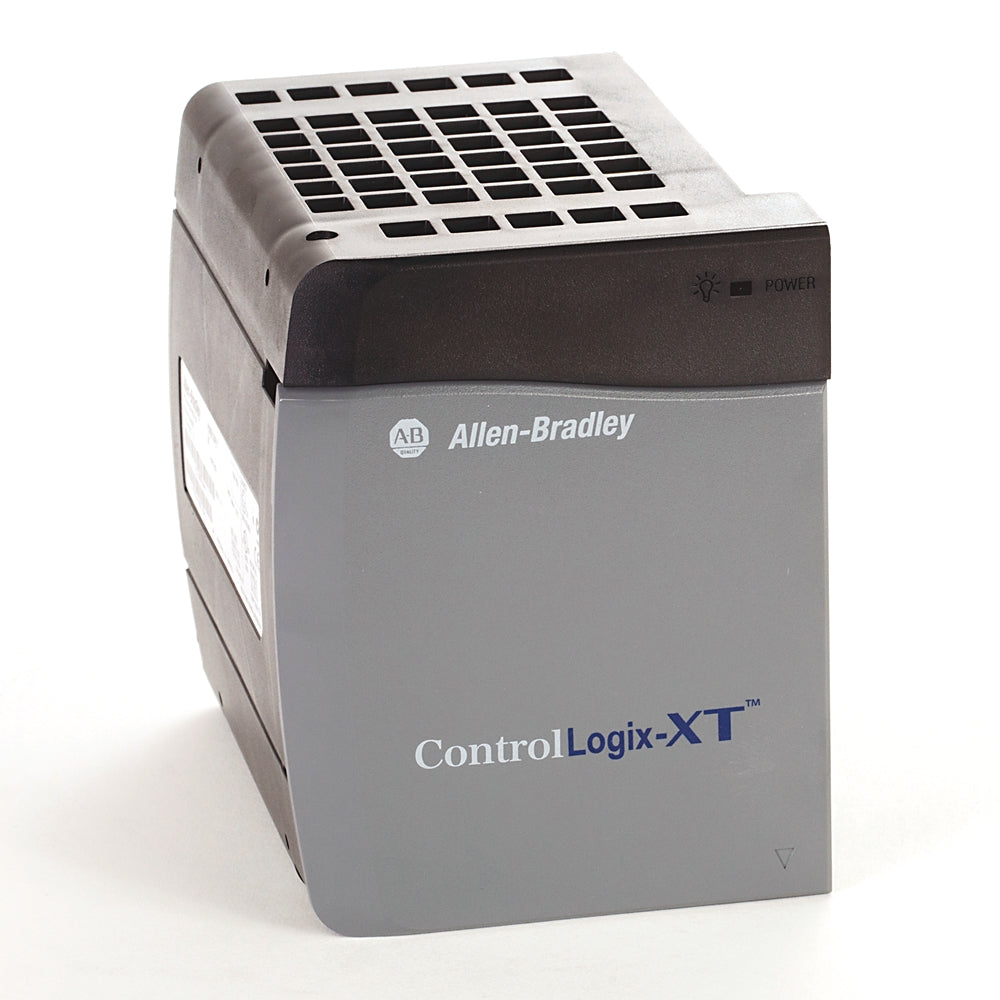

ControlLogix, 120/240V AC Power Supply, Logix XT
Brand: Allen-Bradley / Rockwell Automation | Series: B | Category: ControlLogix | Lifecycle: Active
| Frequency Rating | 47...63Hz |
| Output Voltage and Current | 5V DC @ 8A, 3.3V DC @ 4A, 1.2V DC |
| Conductor screw torque | 0.565 nm |
| Current capacity | 8A @ 5.1V DC |
| Depth | 145 mm |
| Enclosure type rating | None (open-style) |
| Height | 140 mm |
| Input frequency | 47 Hz |
| Input power, max | 82VA/64 W |
| Input voltage at AC 50 Hz | 85 V |
| Input voltage at AC 60 Hz | 85 V |
| Input voltage, nom | 120/240V AC |
| Inrush current, max | 20 A |
| ISAGX | false |
| Operating temperature | -25 °C \u003c Ta \u003c +70 °C (-13 °F \u003c Ta \u003c +158 °F) |
| Output voltage at DC | 5.1 V |
| Power output | 42 W |
| Power output, max | 42 W @ -25...+70 °C (-13...+158 °F) |
| Redundancy capable | false |
| Relative humidity | 5...95% noncondensing |
