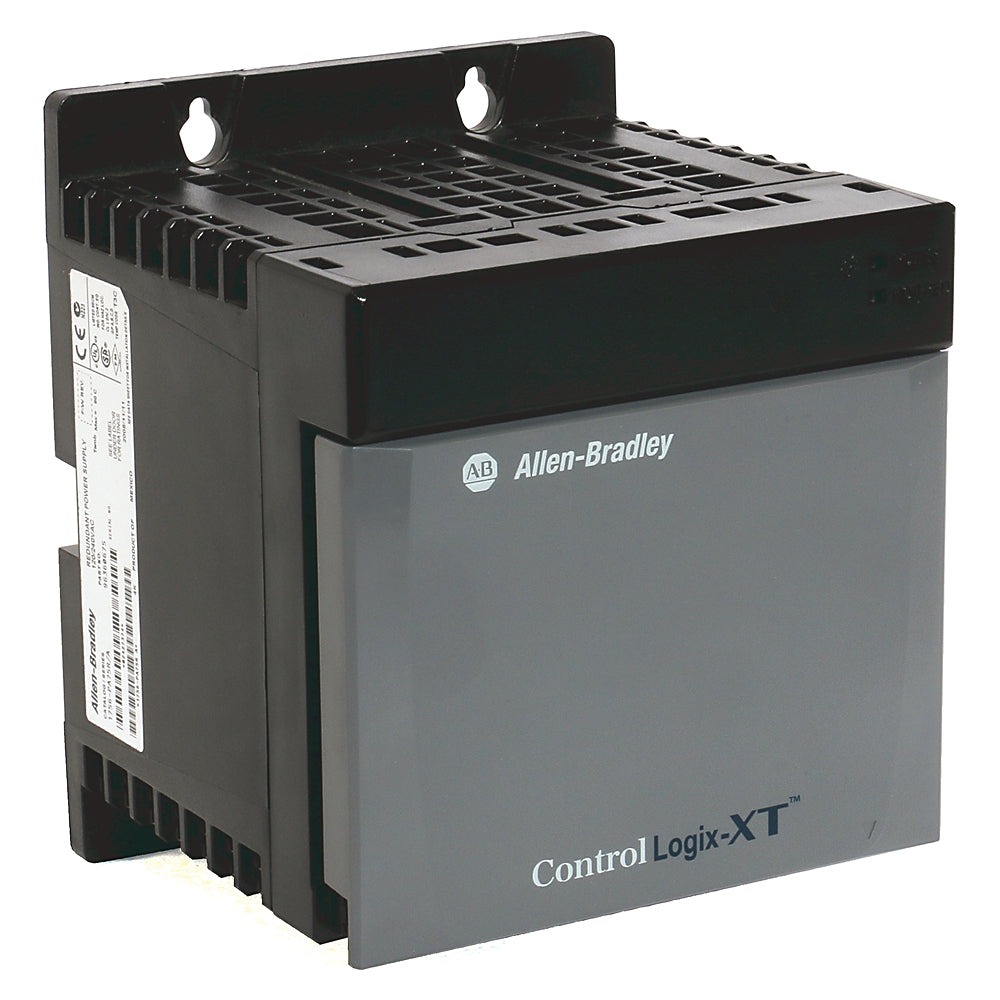

Allen-Bradley 1756-PA75RK - ControlLogix AC Redundant Power Supply

SKU: 1756-PA75RK
(0)
$695.97
In stock
Usually ships within 24 hours
Factory pre-tested, ready for instant commissioning！

All industrial automation equipment comes complete with standard matching accessories and detailed step-by-step commissioning manuals. Unbox, install and commission your automation projects smoothly with full confidence.

Free shipping
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

Email +86 15221245849

Allen-Bradley 1756-PA75RK - ControlLogix AC Redundant Power Supply

Conformally coated 1756 redundant power supply 85-265V AC Power Supply (5V @ 13 Amp) Input Voltage:120V AC;240V AC Power 75.00 W 13.00 A on 5V 2.80 A on 24V

Brand: Allen-Bradley / Rockwell Automation | Series: A | Category: ControlLogix | Lifecycle: Active

Technical Specifications

Frequency Rating 47...63Hz
Output Voltage and Current 5V DC @ 13A, 3.3V DC @ 4A,
Redundant Configuration true
Annunciator power 240V AC 50/60 Hz, 240V DC @ 50mA, resistive only
Conductor screw torque 0.565 nm
Current capacity 4A @ 3.3V DC
Depth 137 mm
Enclosure type rating None (open-style)
Height 175 mm
Hold-up time 2 cycles @ 60 Hz, 2 cycles @ 50 Hz
Input frequency 47 Hz
Input power, max 120VA/115 W
Input voltage at AC 50 Hz 85 V
Input voltage at AC 60 Hz 85 V
Input voltage, nom 120/240V AC
Inrush current, max 20 A
ISAGX false
Operating temperature 0 to 60 °C
Output voltage at DC 5.1 V
Pilot duty rating Annunciator - not rated
