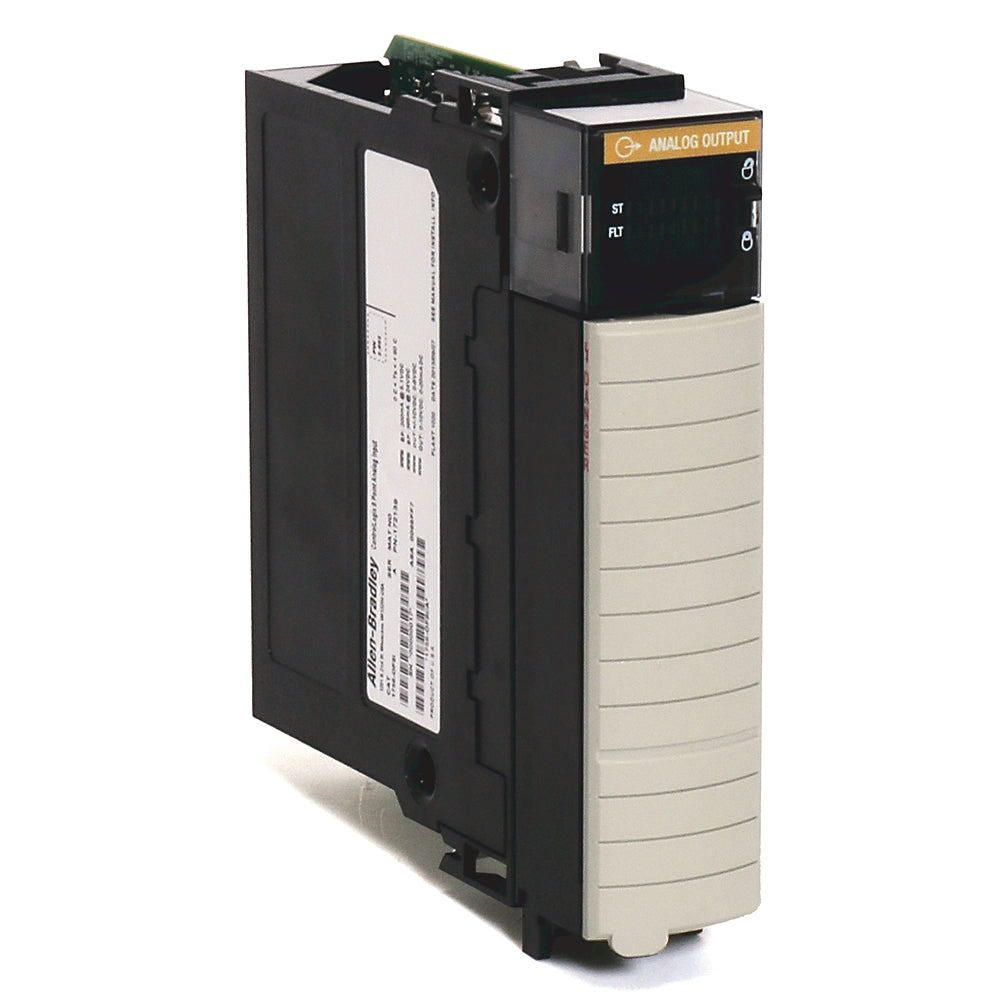

Allen-Bradley 1756-OF8H - ControlLogix 8 Pt A/O I or V HART Module

SKU: 1756-OF8H
(0)
$1,174.00
In stock
Usually ships within 24 hours
Factory pre-tested, ready for instant commissioning！

All industrial automation equipment comes complete with standard matching accessories and detailed step-by-step commissioning manuals. Unbox, install and commission your automation projects smoothly with full confidence.

Free shipping
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +55 555-12345

Allen-Bradley 1756-OF8H - ControlLogix 8 Pt A/O I or V HART Module

Analog Output HART - Current/Voltage 8 Pts (20 Pin)

Brand: Allen-Bradley / Rockwell Automation | Series: | Category: ControlLogix | Lifecycle: Active

Technical Specifications

Display Module Health, In Calibration,Mode
Isolation None between channels (Single,Ended)
Number Of Channels 8
Output Signal +/- 10.4V, 0-20 mA, 4-20 mA
Special Features Supports HART Protocol
Analogue inputs configurable true
Analogue outputs configurable false
Calibrated accuracy Voltage: Better than 0.1% of range @ 25 C (77 F) with HART disabled, Current: Better than 0.15% of range @ 25 C (77 F) with HART disabled
Conducted RF immunity 10V rms with 1 kHz sine-wave 80% AM from 150 kHz...80 MHz
Data format Integer mode (left justified, 2 s complement) IEEE 32-bit floating point
EFT/B immunity 2kV @ 5kHz on signal ports
Emissions IEC 61000-6-4
Enclosure type rating None (open-style)
ESD immunity 6 kV contact discharges, 8 kV air discharges
Gain drift with temperature Voltage: 20 ppm/C, Current: 35 ppm/C
