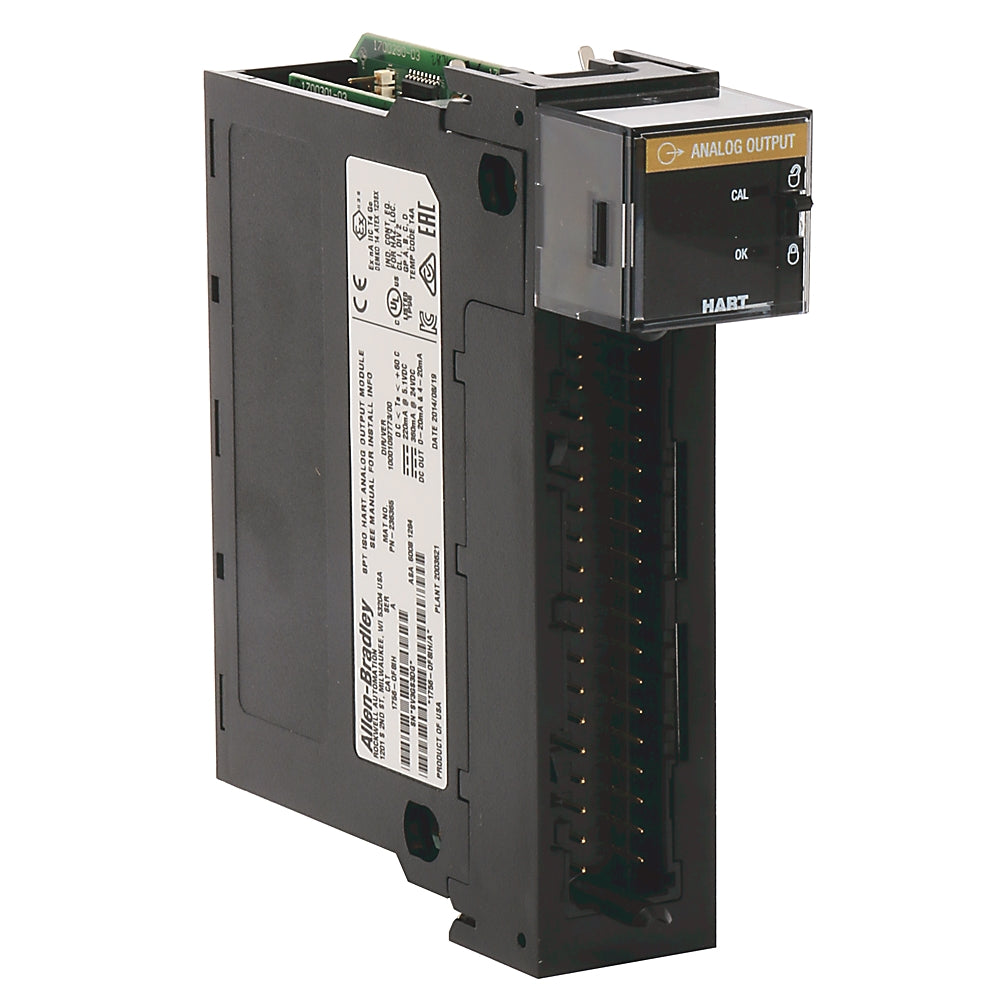

Isolated Analog Output Module - 8-Channel HART
Brand: Allen-Bradley / Rockwell Automation | Series: | Category: ControlLogix | Lifecycle: Active
| Display | Module Health, In Calibration, Mode |
| Isolation | 250V (continuous), Reinforced, insulation type, outputs to, backplane. Basic insulation, type, output to output, and, outputs to ground. |
| Number Of Channels | 8 |
| Output Signal | 4-20mA |
| Special Features | Supports HART Protocol |
| Analogue inputs configurable | true |
| Analogue outputs configurable | false |
| Calibrated accuracy | 0.15% @ 4...20mA, 25 °C (77 °F) |
| Conducted RF immunity | 10V rms with 1 kHz sine-wave 80% AM from 150 kHz...80 MHz |
| Current draw | 400 mA (estimated) @ 24V @ 24V |
| Data format | IEEE 32-bit floating point |
| Drive capability | 50...750 Ω with short circuit survival |
| EFT/B immunity | ±2kV @ 5kHz on signal ports |
| Emissions | IEC 61000-6-4 |
| Enclosure type rating | None (open-style) |
| ESD immunity | 6 kV contact discharges, 8 kV air discharges |
| Gain drift with temperature | ±4 ppm of full scale range/°C |
| Input, current | true |
| Input, resistance thermometer | false |
| Input, resistor | false |
