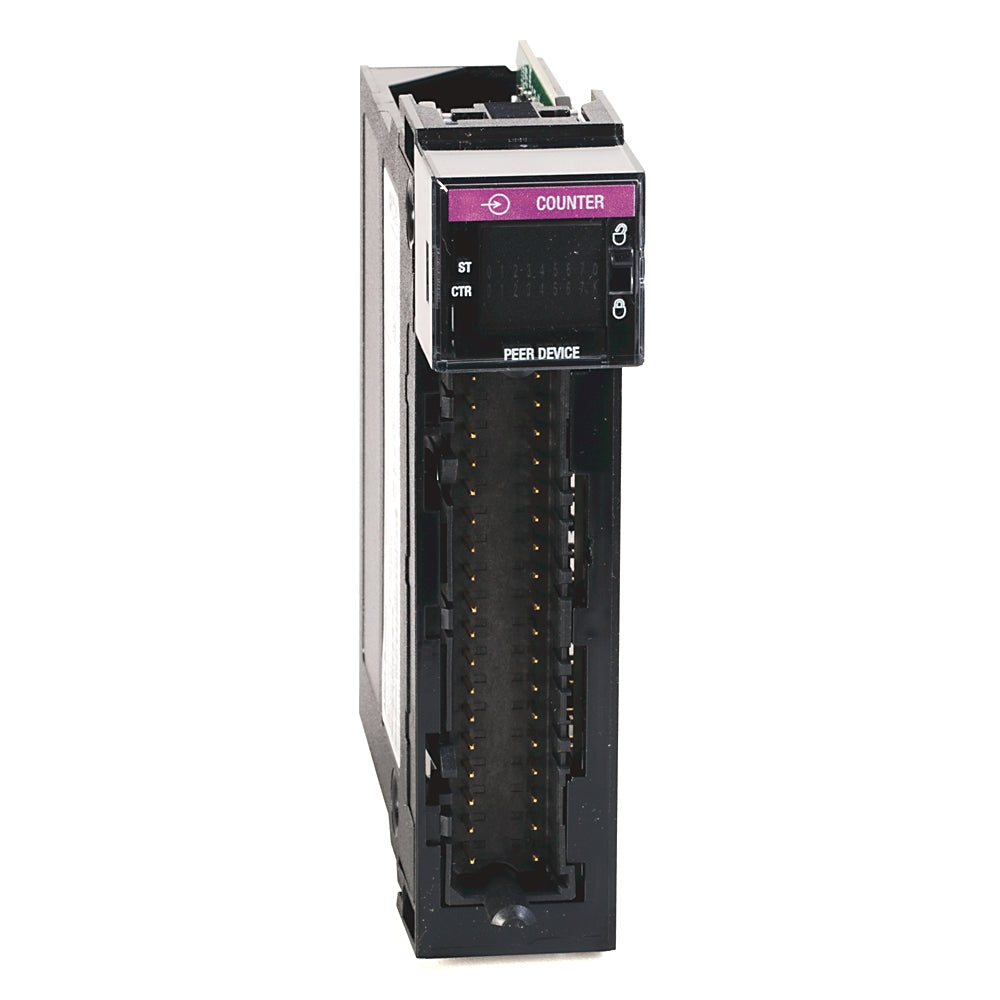

10-30 VDC Counters at 40 KHz, 8 Counters / 8 Isolated Inputs, Peer to Peer Input (36 Pin)
Brand: Allen-Bradley / Rockwell Automation | Series: A | Category: ControlLogix | Lifecycle: Active | BABA Compliant: Yes
| Change of state | Any transition |
| Conducted RF immunity | 10V rms with 1 kHz sine-wave 80% AM from 150 kHz...80 MHz |
| Counting frequency, max | 40 khz |
| Count range | 0...2, 147, 483, 648 (31-bit counter) |
| Current draw | 275mA @ 5.1V, 3mA @ 24V |
| Cyclic update time | 0.2 ms |
| Digital inputs configurable | true |
| Digital outputs configurable | false |
| EFT/B immunity | ±4kV @ 5kHz on signal ports |
| Emissions | IEC 61000-6-4 |
| Enclosure type | None (open-style) |
| ESD immunity | 6 kV contact discharges, 8 kV air discharges |
| Input delay time | OFF to ON: 14 µs nom/23 µs max + user-configurable filter time of 0...30, 000 µs, ON to OFF: 14 µs nom/23 µs max + user-configurable filter time of 0...30, 000 µs |
| Input impedance, max | 6 kΩ @ 30V DC |
| Inputs | 8 individually isolated, standard input or counter-control functionality |
| Input voltage, nom | 24V DC |
| Isolation voltage | 250V (continuous), reinforced insulation type, inputs to backplane, 250V (continuous), basic insulation type, input to input |
| Module keying | Electronic, software configurable |
| Nonoperating temperature | -40 °C |
| North American temperature code | T4A |
