Allen-Bradley

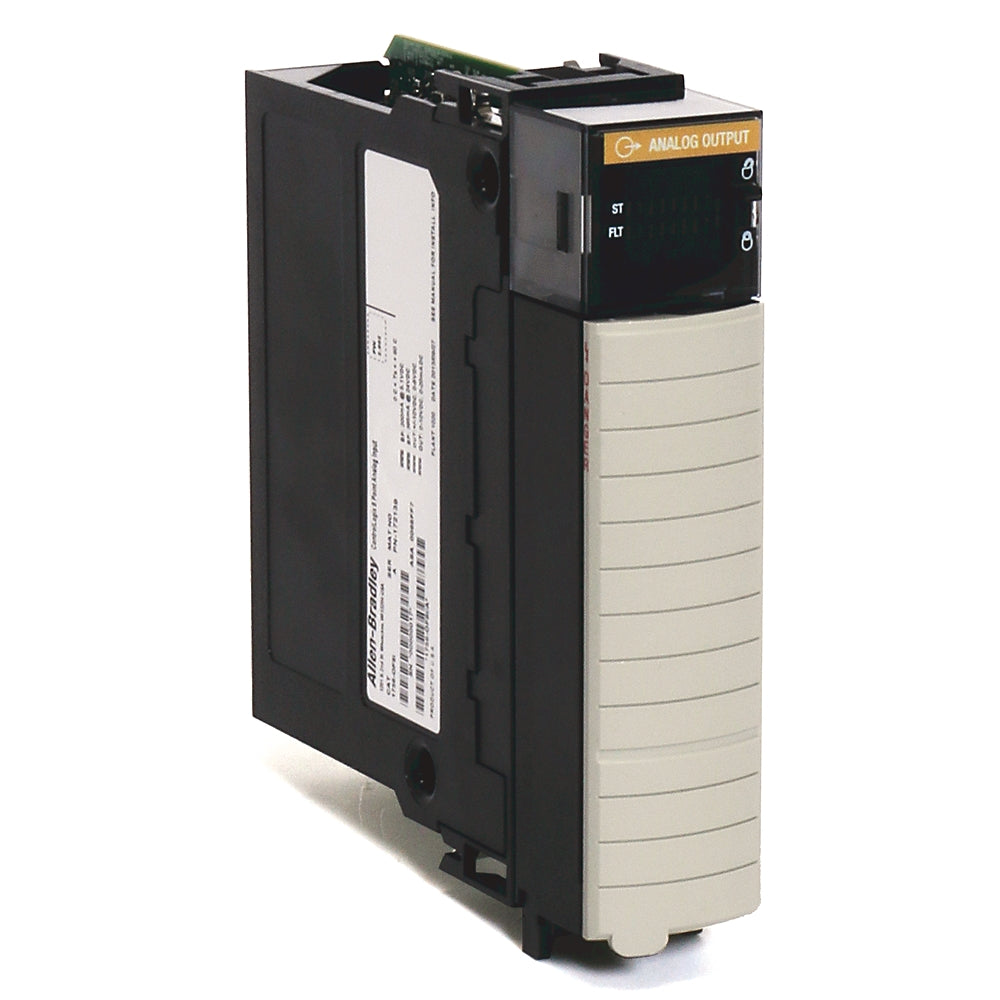

Allen-Bradley 1756-OF8I - ControlLogix 8 Point Analog Output

SKU: 1756-OF8I
(0)
$245.00
In stock
Usually ships within 24 hours
Factory pre-tested, ready for instant commissioning！

All industrial automation equipment comes complete with standard matching accessories and detailed step-by-step commissioning manuals. Unbox, install and commission your automation projects smoothly with full confidence.

Free shipping
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +55 555-12345

Allen-Bradley 1756-OF8I - ControlLogix 8 Point Analog Output

Analog Output Module, 8 Isolated Points, Current and Voltage (36 Pin)

Brand: Allen-Bradley / Rockwell Automation | Series: | Category: ControlLogix | Lifecycle: Active

Technical Specifications

Display Module Health, In Calibration,Mode, Input, Fault and,Communication Status
Isolation 250V (continuous), reinforced,insulation type, outputs to,backplane. 250V (continuous),basic insulation type, output,to output
Special Features Per Point Isolation
Analogue inputs configurable true
Analogue outputs configurable false
Calibrated accuracy 0.05% @ 25C (77 F)
Conducted RF immunity 10V rms with 1 kHz sine-wave 80% AM from 150 kHz...80 MHz
Current draw 200mA @ 5.1V, Voltage or current mode with 250 loads \u003d 220mA @ 24V, Current mode with 500 loads \u003d 275mA @ 24V, Current mode with 750 loads \u003d 340mA @ 24V, Current mode with 1000 loads \u003d 385mA @ 24V
Data format IEEE 32-bit floating point
Drive capability Current output \u003d 0...1000 , Voltage output \u003d\u003e1000
EFT/B immunity 4kV @ 5kHz on signal ports
Emissions IEC 61000-6-4
Enclosure type rating None (open-style)
ESD immunity 6 kV contact discharges, 8 kV air discharges
Input, current true
