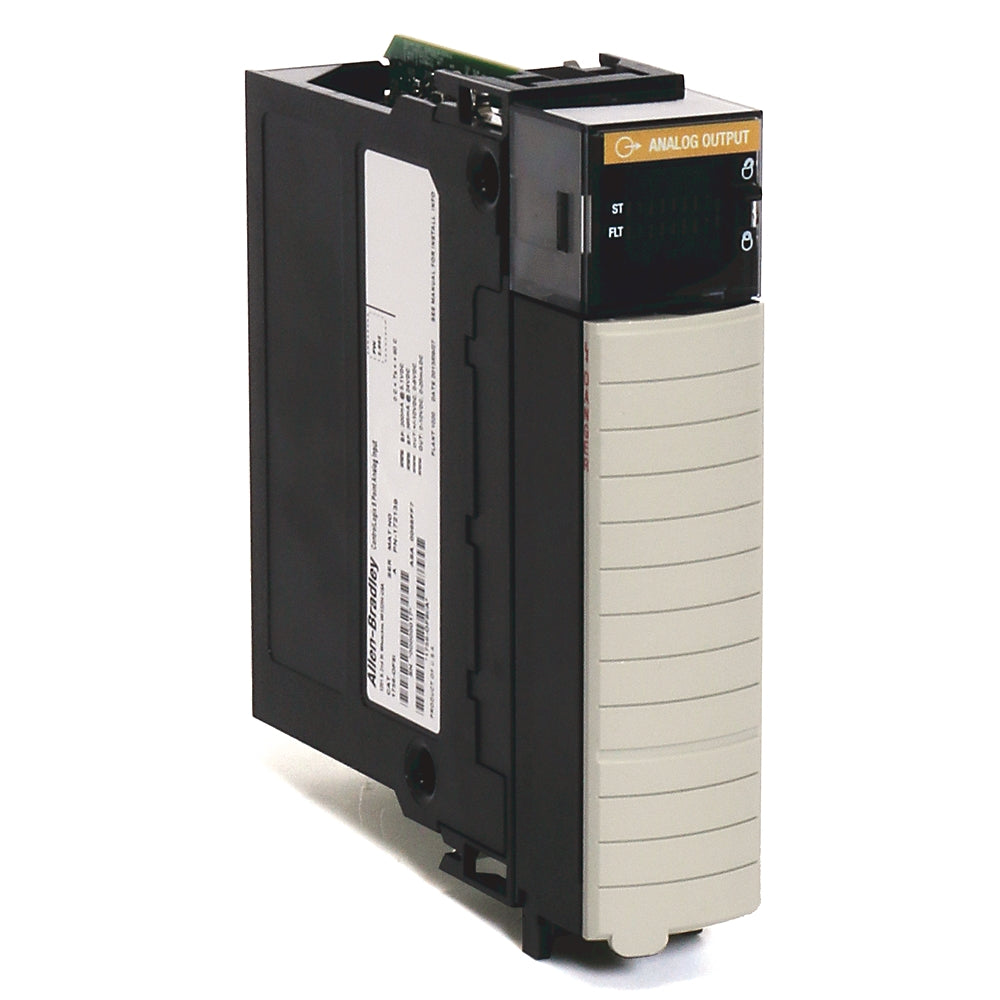

ControlLogix 8 Point Analog Output 1756-OF8I

ControlLogix 8 Point Analog Output 1756-OF8I

$1,600.00 USD
$1,600.00 USD
Sale Sold out
Shipping calculated at checkout.

Catalog #: 1756-OF8I

Input, current True
Input, voltage True
Input, resistor False
Input, resistance thermometer False
Input, thermocouple False
Input signal, configurable True
Output, current False
Output, voltage False
Output signal configurable False
Analogue inputs configurable True
Analogue outputs configurable False
Type of electric connection Screw-/spring clA connection
Output range -10…10V, 0…10V, 0…5V, 0…20 Ma
Module keying Electronic, software configurable
Module error over full temperature range 0.1 %
Module conversion method R-Ladder DAC, monotonicity with no missing codes
Open circuit detection Current output = Yes
Drive capability Current output = 0...1000 Ω, Voltage output =>1000 Ω
Short circuit detection Voltage output = Yes
Data format IEEE 32-bit floating point
Wire category 2 - on signal ports
Overvoltage protection ±30V DC (voltage/current)
Settling time <2 ms to 95% of final value with resistive loads
Total backplane power Voltage mode = 6.3 W, Current mode with 250 Ω loads = 6.3 W, Current mode with 500 Ω loads = 7.6 W, Current mode with 750 Ω loads = 9.2 W, Current mode with 1000 Ω loads = 10.2 W
Module scan time 1 ms minimum
Thermal dissipation Voltage mode = 18.4 BTU/hr, Current mode with 250 Ω loads = 18.4 BTU/hr, Current mode with 500 Ω loads = 19.8 BTU/hr, Current mode with 750 Ω loads = 22.2 BTU/hr, Current mode with 1000 Ω loads = 22.9 BTU/hr
Current draw 200mA @ 5.1V, Voltage or current mode with 250 Ω loads = 220mA @ 24V, Current mode with 500 Ω loads = 275mA @ 24V, Current mode with 750 Ω loads = 340mA @ 24V, Current mode with 1000 Ω loads = 385mA @ 24V
Inputs Eight isolated channels - any combination of voltage or current mode
Power dissipation Voltage mode: 5.4 W (18.4 BTU/hr), Current mode with 250 Ω loads: 5.4 W (18.4 BTU/hr), Current mode with 500 Ω loads: 5.8 W (19.8 BTU/hr), Current mode with 750 Ω loads: 6.5 W (22.2 BTU/hr), Current mode with 1000 Ω loads: 6.7 W (22.9 BTU/hr)
Resolution 16 bit, ±10.5V (0.32 mV/count), 0...10.5V (0.16 mV/count), 0...5.25V (0.08 mV/count), 0...21 mA (0.32 µA/count)
Wire size 0.33...2.1 mm² (22...14 AWG) solid or stranded shielded copper wire, rated at 90 °C (194 °F) or greater, 1.2 mm (3/64 in.) insulation maximum
Calibrated accuracy 0.05% @ 25°C (77 °F)
Suitable for safety functions False
Output impedance 46 Ω (Current output)
