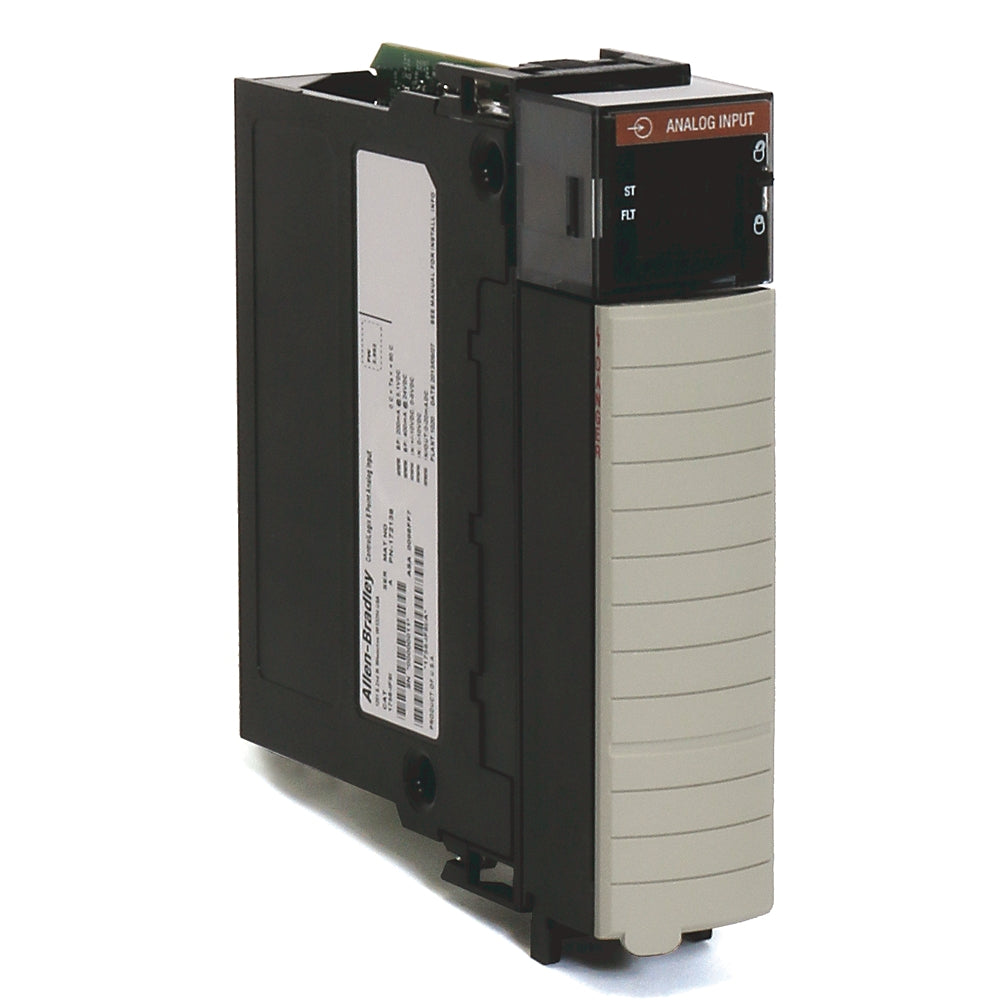

Allen-Bradley 1756-IF8I - ControlLogix 8 Point Analog Input

SKU: 1756-IF8I
(0)
$234.54
In stock
Usually ships within 24 hours
Factory pre-tested, ready for instant commissioning！

All industrial automation equipment comes complete with standard matching accessories and detailed step-by-step commissioning manuals. Unbox, install and commission your automation projects smoothly with full confidence.

Free shipping
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +55 555-12345

Allen-Bradley 1756-IF8I - ControlLogix 8 Point Analog Input

Analog Input Module, 8 Isolated Points, Current, Current Sourcing and Voltage (36 Pin)

Brand: Allen-Bradley / Rockwell Automation | Series: | Category: ControlLogix | Lifecycle: Active

Technical Specifications

Display Module Health, In Calibration,Mode, Input, Fault and,Communication Status
Input Signal -10G10V, 0G10V, 0G5V, 0G
Isolation 250V (continuous), reinforced,insulation type, inputs to,backplane. 250V (continuous),basic insulation type, input,to input
Special Features Per Point Isolation
Analogue inputs configurable true
Analogue outputs configurable false
Calibrated accuracy 0.05% @ 25C (77 F)
Channel bandwidth Notch Filter configuration dependent
Common mode noise rejection 120 dB @ 50/60 Hz
Conducted RF immunity 10V rms with 1 kHz sine wave 80% AM from 150 kHz...80 MHz on shielded signal ports
Current draw 200mA @ 5.1V, Voltage/Non-sourcing current mode: 150mA @ 24V, Sourcing current mode: 400mA @ 24V (In sourcing current mode, the channel provides loop power.)
Data format IEEE 32-bit floating point
EFT/B immunity 4kV @ 5kHz on shielded signal ports
Emissions IEC 61000-6-4
Enclosure type rating None (open-style)
