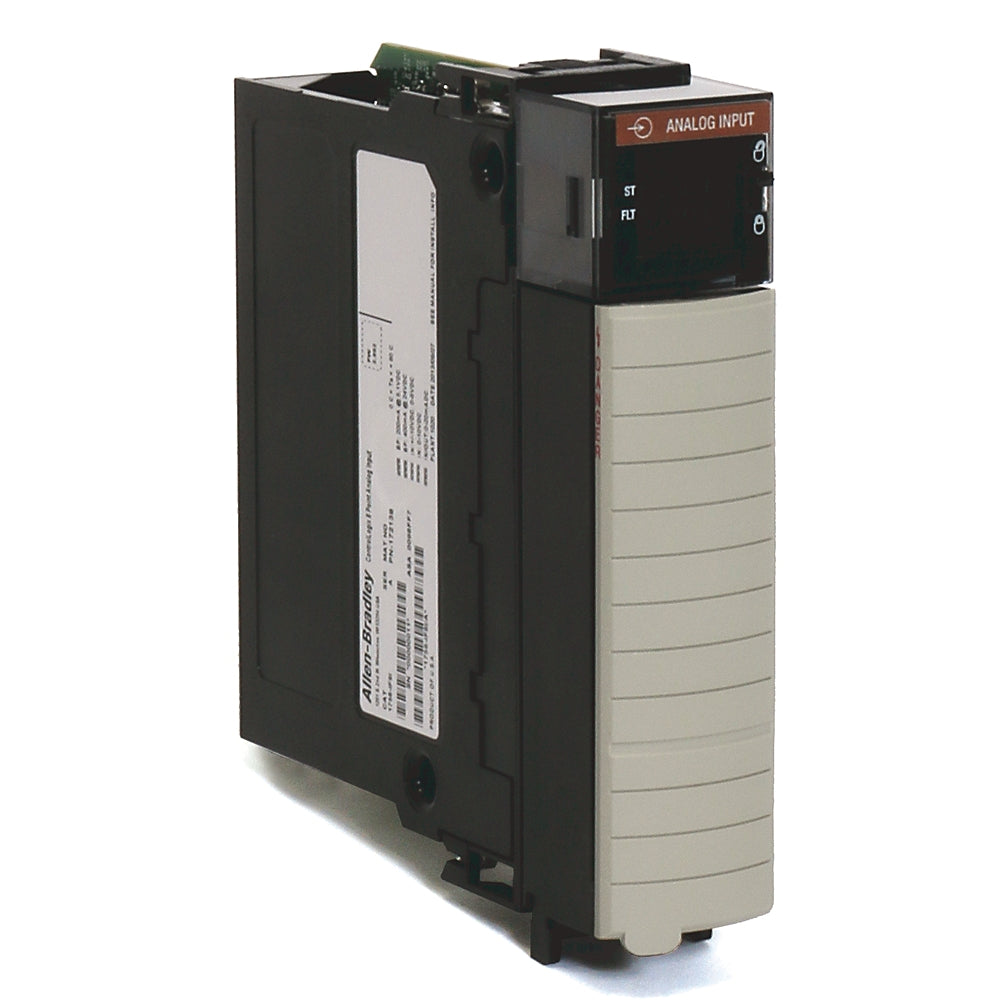

ControlLogix 8 Point Analog Input 1756-IF8I

ControlLogix 8 Point Analog Input 1756-IF8I

$1,300.00 USD
$1,300.00 USD
Sale Sold out
Shipping calculated at checkout.

Catalog #: 1756-IF8I

Input, current True
Input, voltage True
Input, resistor False
Input, resistance thermometer False
Input, thermocouple False
Input signal, configurable True
Output, current False
Output, voltage False
Output signal configurable False
Analogue inputs configurable True
Analogue outputs configurable False
Type of electric connection Screw-/spring clA connection
Channel bandwidth Notch Filter configuration dependent
Module keying Electronic, software configurable
Module error over full temperature range 0.1 %
Module conversion method Sigma-Delta
Input range -10...10V, 0…10V @ 0...5V, 0...20 mA
Data format IEEE 32-bit floating point
Wire category 2 - on signal ports
Overvoltage protection ±30V DC maximum
Common mode noise rejection 120 dB @ 50/60 Hz
Normal mode noise rejection 80 dB @ 60 Hz
Module input scan time, min 1 ms
Voltage and current ratings Backplane: 5.1V DC 200mA @ 24V DC 400 mA, Input voltage: -10V to +10V @ 0V to 10V @ 0V to 5V, Input current: 0 mA to 20 mA, Output current: 0 mA to 20 mA
Settling time Notch Filter configuration dependent
Total backplane power Voltage/Non-sourcing current mode: 4.6 W, Sourcing current mode: 10.6 W
Thermal dissipation Voltage mode: 15.7 BTU/hr, Non-sourcing current mode: 17.4 BTU/hr, Sourcing current mode: 24.9 BTU/hr
Current draw 200mA @ 5.1V, Voltage/Non-sourcing current mode: 150mA @ 24V, Sourcing current mode: 400mA @ 24V (In sourcing current mode, the channel provides loop power.)
Inputs Eight isolated channels - any combination of voltage or current mode
Power dissipation Voltage mode: 4.6 W (15.7 BTU/hr), Non-sourcing current mode: 5.1 W (17.4 BTU/hr), Sourcing current mode: 7.3 W (24.9 BTU/hr)
Resolution 24 bit, ±10.5V (1.49 µV/count), 0...10.5V (1.49 µV/count), 0...5.25V (1.49 µV/count), 0...21 mA (2.99 nA/count)
Wire size 0.33...2.1 mm² (22...14 AWG) solid or stranded shielded copper wire rated at 90 °C (194 °F), or greater, 1.2 mm (3/64 in.) insulation maximum
Calibrated accuracy 0.05% @ 25°C (77 °F)
Open circuit detection time 5 s
Suitable for safety functions False
Onboard data alarming True
Scaling to engineering units True
Real-time channel sampling True
Sourcing voltage, min 20V DC
Sourcing voltage, max 36V DC (open circuit)
Sourcing current, max Current limited <45 mA (IN_x/I/SRC to RTN_x)
