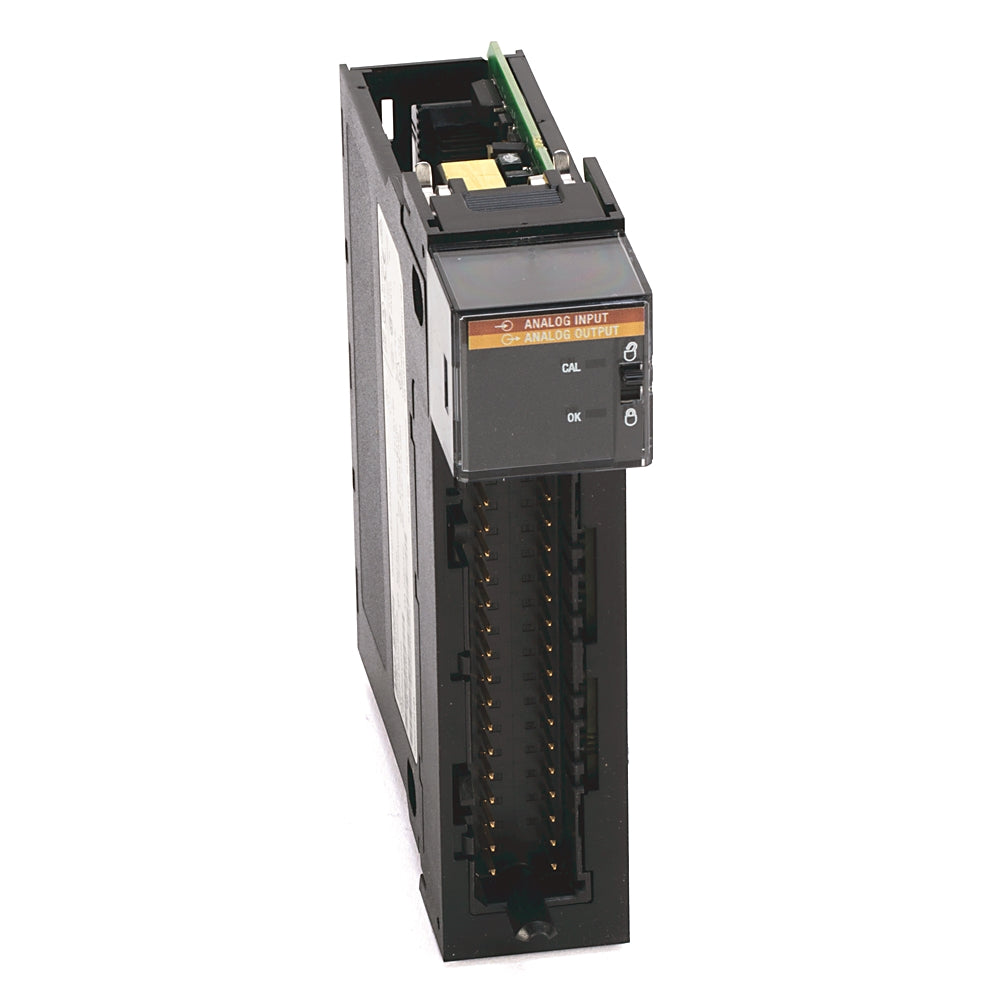

Fast Analog 4 Cur-Volt In/2 Cur-Volt Out 36 Pin)
Brand: Allen-Bradley / Rockwell Automation | Series: B | Category: ControlLogix | Lifecycle: Active | BABA Compliant: Yes
| Display | Module Health, In Calibration, Mode |
| Input Signal | +/- 10V, 0-10.5V, 0-5.25V., 0-21mA |
| Isolation | None between channels (Single, Ended) |
| Output Signal | +/- 10.4V, 0-21mA |
| Special Features | Sub-ms channel scans, Synchronized sAling across, multiple modules |
| Analogue inputs configurable | true |
| Analogue outputs configurable | false |
| Calibrated accuracy | Input: 0.05% of range immediately after calibration Better than 0.1% of range within calibration interval @ 25 °C (77 °F), Output: 0.05% of range immediately after calibration Better than 0.1% of range within calibration interval @ 25 °C (77 °F) |
| Conducted RF immunity | 10V rms with 1 kHz sine wave 80% AM from 150 kHz...80 MHz on shielded signal ports |
| Current draw | 375mA @ 5.1V, 100mA @ 24V |
| Data format | Integer mode (left justified, 2 s complement) IEEE 32-bit floating point |
| Drive capability | Voltage: \u003e2000 Ω, Current: 0...750 Ω |
| EFT/B immunity | ±2kV @ 5kHz on shielded signal ports |
| Emissions | IEC 61000-6-4 |
| Enclosure type rating | None (open-style) |
| ESD immunity | 6 kV contact discharges, 8 kV air discharges |
| Gain drift with temperature | Voltage: 25 ppm/°C maximum, input, Current: 35 ppm/°C maximum, input, Voltage: 25 ppm/°C maximum, output, Current: 50 ppm/°C maximum, output |
| Input conversion method | Successive approximation |
| Input, current | true |
| Input impedance | Voltage: \u003e1 MΩ, Current: 249 Ω |
