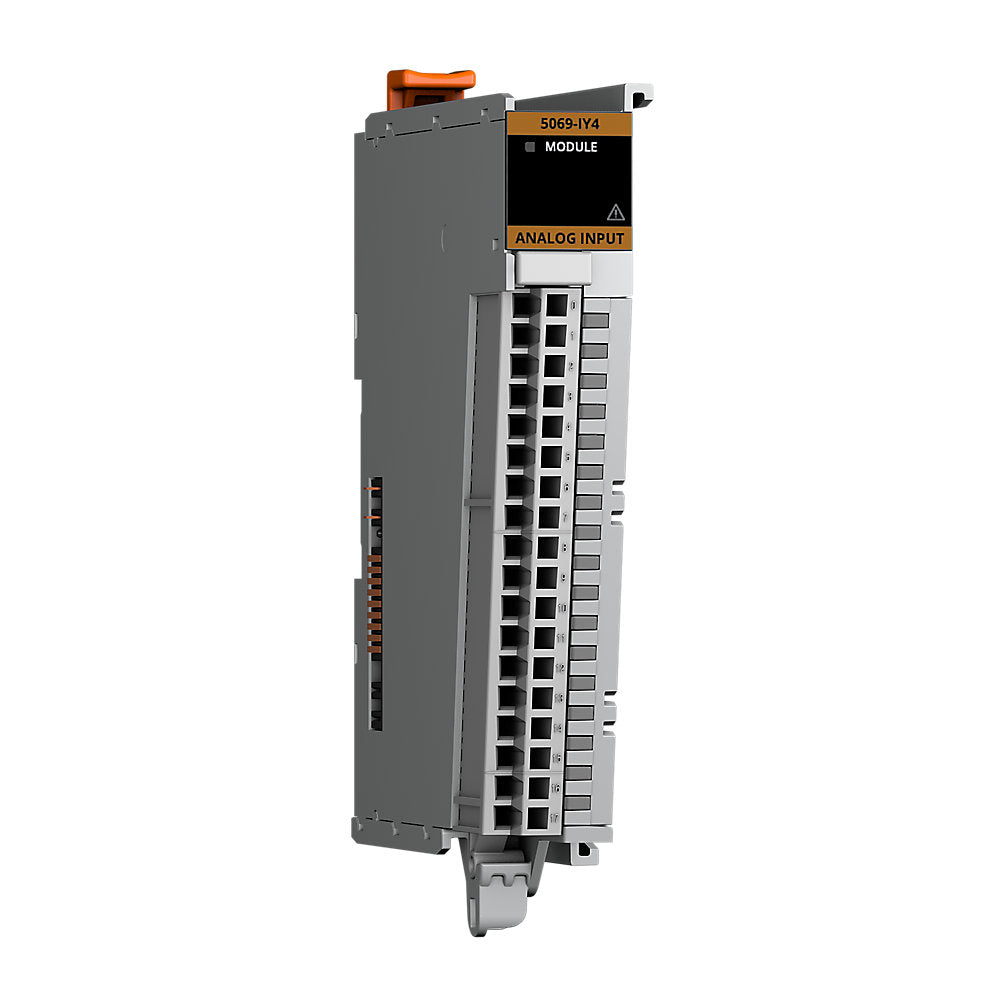

5069 Compact I/O 4 Channel Universal Voltage/Current/RTD/TC Analog Input Module
Brand: Allen-Bradley / Rockwell Automation | Series: | Category: Compact 5000 I/O | Lifecycle: Active
| Number Of Channels | 4 Channel |
| Output Signal | Analog |
| Accuracy drift with temperature | Voltage: 0.200% full scale, Current: 0.300% full scale, RTD: 0.200% full scale, Thermocouple/mvolt: 0.200% full scale |
| Analogue inputs configurable | true |
| Analogue outputs configurable | false |
| Calibrated accuracy | Voltage: 0.100% full scale @ 25 C Current: 0.100% full scale @ 25 C RTD: 0.100% full scale @ 25 C Thermocouple/mvolt: 0.100% full scale @ 25 C |
| Calibration methods | Factory calibrated, User-performed (optional) |
| CJC inputs | Two CJC sensors, 2 thermistors embedded in 5069-RTB14CJC-(screw or spring) RTB, -or- 2 thermistors wired to 5069-RTB18-(screw or spring) RTB, Thermistor type: Measurement specialties, Inc. 10K3A1A, (for thermocouple mode use only) |
| Common mode noise rejection ratio | 130 dB @ 50/60 Hz |
| Common mode voltage | 10V (Current mode and 3-wire RTD mode), 2V (Voltage mode) |
| Conducted RF immunity | 10V rms with 1 kHz sine-wave 80% AM from 150 kHz...80 MHz |
| Data format | IEEE 32-bit floating point |
| Data value during overload condition | Full scale, overrange flag, Data uncertain / data bad |
| Depth | 105.42 mm |
| DIN rail | Compatible zinc-plated chromate-passivated steel DIN rail, You can use the EN50022 - 35 x 7.5 mm (1.38 x 0.30 in) |
