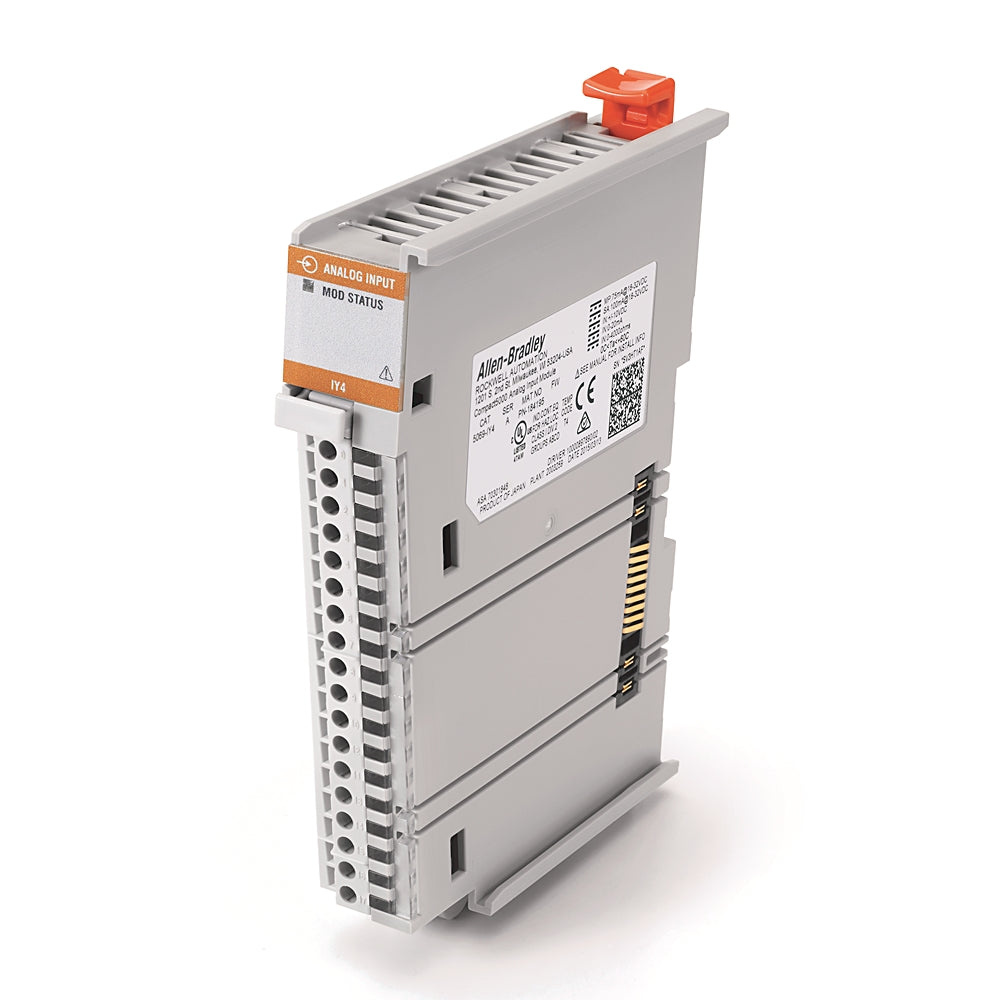

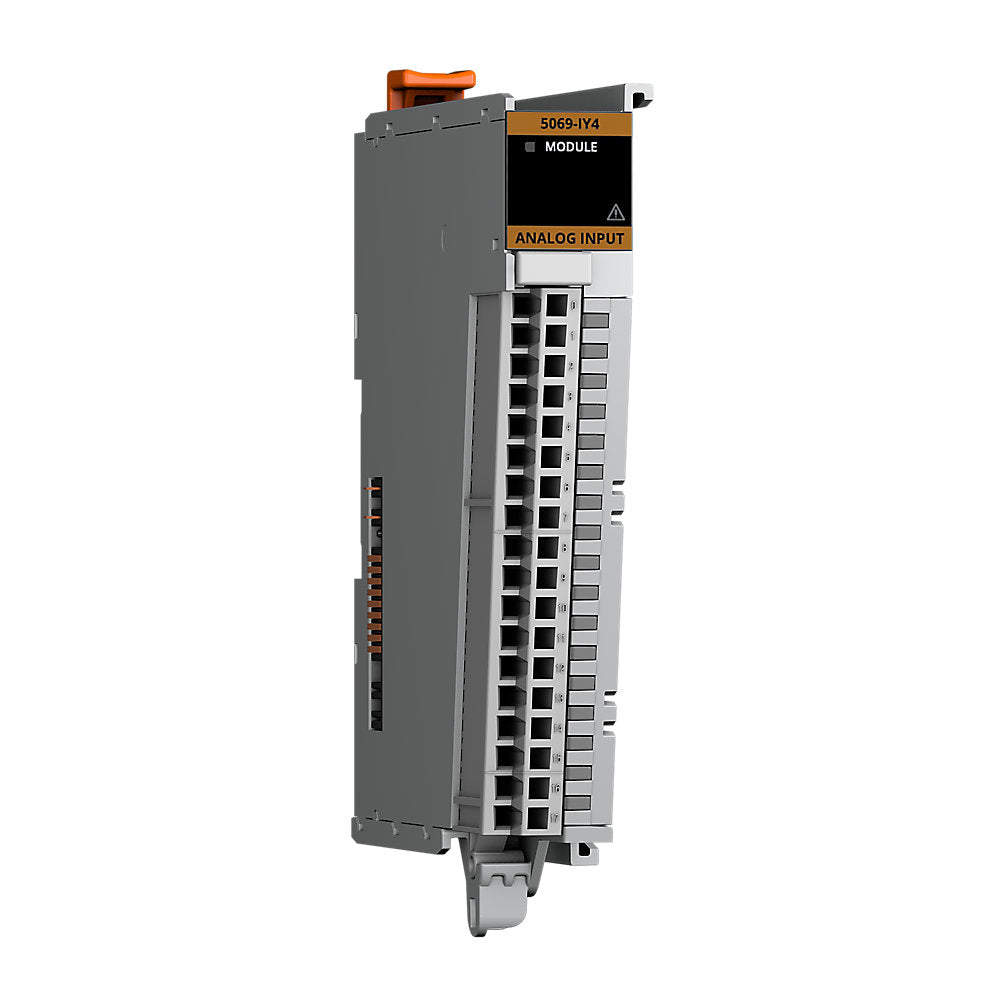

Allen-Bradley 5069-IY4 - Compact 5000 UniversalAnalog InputModule

SKU: 5069-IY4
(0)
$336.88
In stock
Usually ships within 24 hours
Factory pre-tested, ready for instant commissioning！

All industrial automation equipment comes complete with standard matching accessories and detailed step-by-step commissioning manuals. Unbox, install and commission your automation projects smoothly with full confidence.

Free shipping
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +55 555-12345

Allen-Bradley 5069-IY4 - Compact 5000 UniversalAnalog InputModule

5069 Compact I/O 4 Channel Universal Voltage/Current/RTD/TC Analog Input Module

Brand: Allen-Bradley / Rockwell Automation | Series: | Category: Compact 5000 I/O | Lifecycle: Active

Technical Specifications

Notch filter frequency at RPI of 2.5 ms, min 10 khz
Emissions IEC 61000-6-4
Resolution, RTD (16 bit at 10 Hz notch filter) 3 wire mode: \u003c7.9 m?/cnt in 1...500 ? mode, \u003c15.8 m?/cnt in 2...1000 ? mode, \u003c31.7 m?/cnt in 4...2000 ? mode, \u003c63.4 m?/cnt in 8...4000 ? mode
Inputs 4 differential
Shock Operating: 30 G, Non operating: 50 G
Normal mode noise rejection ratio 65 dB @ 50/60 Hz, notch filter dependent
Accuracy drift with temperature Voltage: 0.200% full scale, Current: 0.300% full scale, RTD: 0.200% full scale, Thermocouple/mvolt: 0.200% full scale
Slot width 1
Resolution, thermocouple / millivolt 16 bit at 10 Hz notch filter: \u003c3.1 �V/cnt in �100 mV mode
Input, voltage true
Height 144.57 mm
Onboard data alarming true
MOD power 75mA @ 18...32V DC
North American temperature code T4
Resolution, voltage 16 bit at 10 Hz notch filter: �10.5V: \u003c320 �V/count (15 bit plus sign bipolar), 0...10.5V: \u003c160 �V/count (16 bit unipolar), 0...5.25V: \u003c80 �/V count (16 bit unipolar)
EFT/B immunity �4kV @ 5kHz on power ports, �3kV @ 5kHz on shielded input ports
Notch filter at minimum RPI 62.5 kHz (0.2 ms, 1 channel enabled)
Output, voltage false
Relative humidity 5...95% noncondensing
HART handheld compliance Add an external 250 ? resistor into the current loop for HART transmitter compliance
