Allen-Bradley

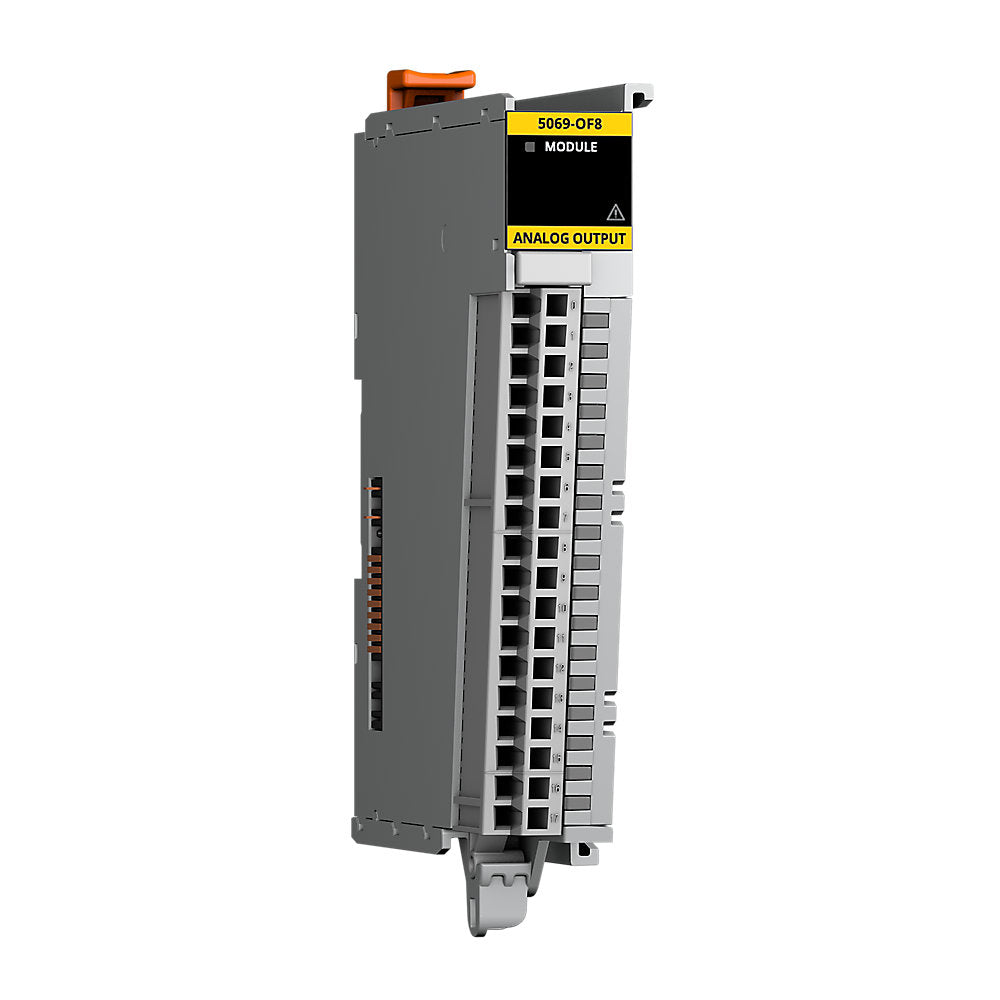

Allen-Bradley 5069-OF8 - Compact 5000 Analog Output Module

SKU: 5069-OF8
(0)
$50.13
In stock
Usually ships within 24 hours
Factory pre-tested, ready for instant commissioning！

All industrial automation equipment comes complete with standard matching accessories and detailed step-by-step commissioning manuals. Unbox, install and commission your automation projects smoothly with full confidence.

Free shipping
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +55 555-12345

Allen-Bradley 5069-OF8 - Compact 5000 Analog Output Module

5069 Compact I/O 8 Channel Voltage/Current Analog Output Module

Brand: Allen-Bradley / Rockwell Automation | Series: | Category: Compact 5000 I/O | Lifecycle: Active

Technical Specifications

Number Of Channels 8 Channel
Output Signal Analog
Accuracy drift with temperature Voltage: 0.30% full scale, Current: 0.50% full scale
Analog output ratings 10V DC @ 0...20mA per channel
Analogue inputs configurable false
Analogue outputs configurable true
Calibrated accuracy Voltage: 0.10% full scale @ 25 C Current: 0.10% full scale @ 25 C
Calibration methods Factory calibrated, User-performed (optional)
Capacitive load, max 1 F (voltage mode only)
Conducted RF immunity 10V rms with 1 kHz sine-wave 80% AM from 150 kHz...80 MHz
Conversion time Per channel: 25 s
Data format IEEE 32-bit floating point
Depth 105.42 mm
DIN rail Compatible zinc-plated chromate-passivated steel DIN rail, You can use the EN50022 - 35 x 7.5 mm (1.38 x 0.30 in)
Drive capability Voltage: 1000 minimum, Current: 500 maximum
