Allen-Bradley

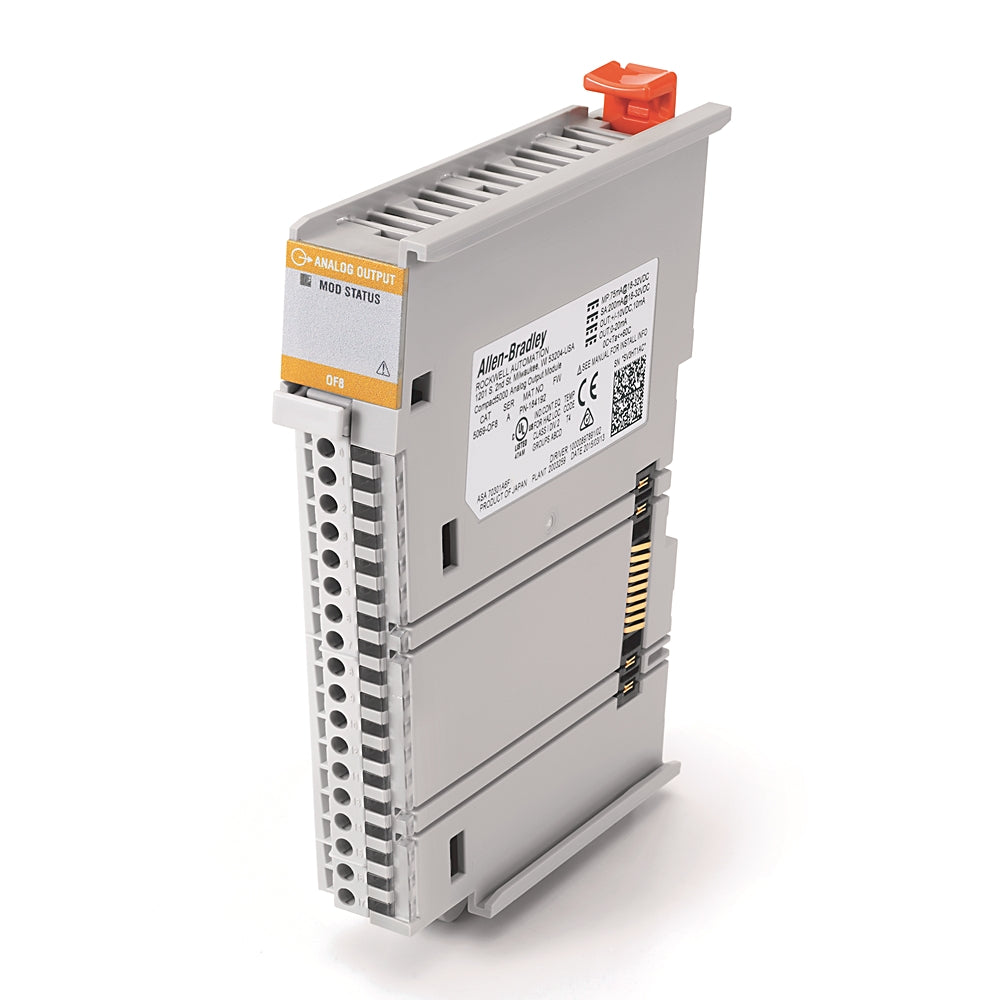

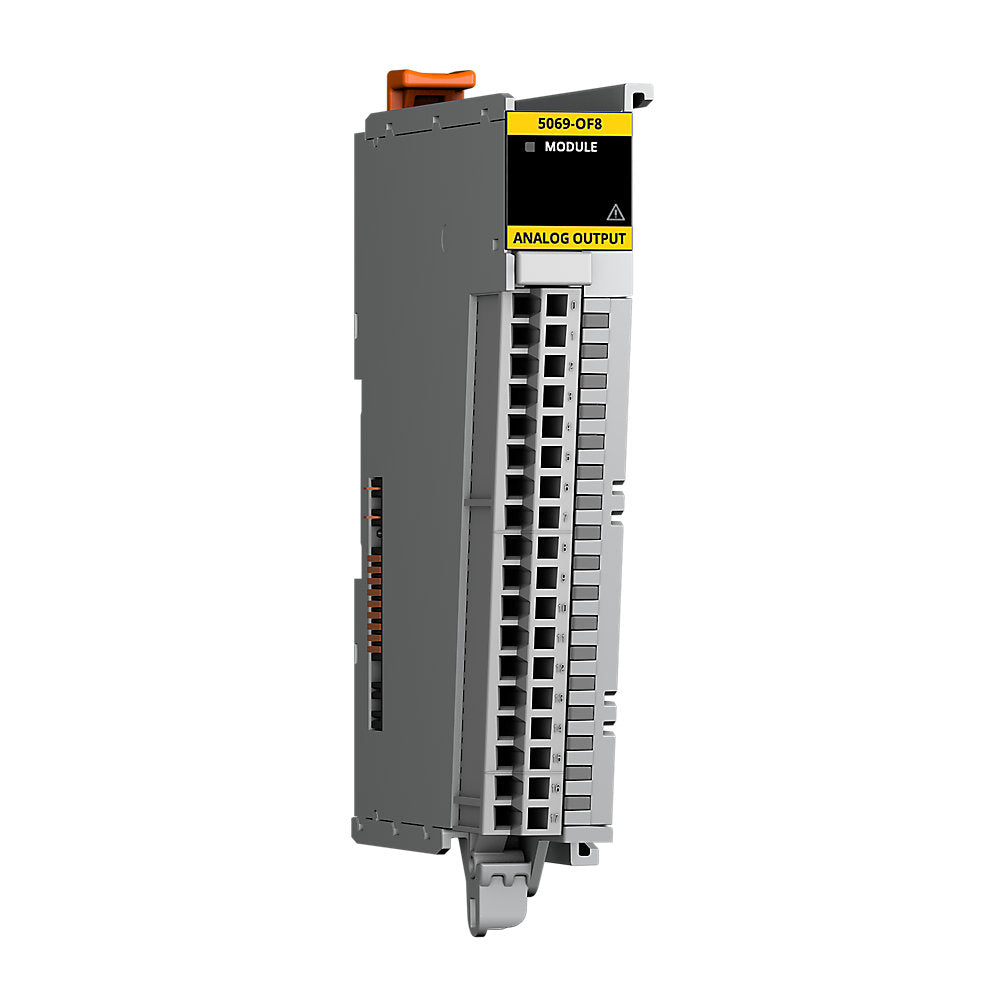

Allen-Bradley 5069-OF8 - Compact 5000 Analog Output Module

SKU: 5069-OF8
(0)
$50.13
In stock
Usually ships within 24 hours
Factory pre-tested, ready for instant commissioning！

All industrial automation equipment comes complete with standard matching accessories and detailed step-by-step commissioning manuals. Unbox, install and commission your automation projects smoothly with full confidence.

Free shipping
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email +55 555-12345

Allen-Bradley 5069-OF8 - Compact 5000 Analog Output Module

5069 Compact I/O 8 Channel Voltage/Current Analog Output Module

Brand: Allen-Bradley / Rockwell Automation | Series: | Category: Compact 5000 I/O | Lifecycle: Active

Technical Specifications

Emissions IEC 61000-6-4
Inductive load, max 1 mH (current mode only)
Shock Operating: 30 G, Non operating: 50 G
Accuracy drift with temperature Voltage: 0.30% full scale, Current: 0.50% full scale
Capacitive load, max 1 �F (voltage mode only)
SA power passthrough, max 9.95A @ 18...32V DC
Output range, current 0...20mA @ 4...20mA
Resolution 16 bit across �10.5V - 320 �V/bit, 16 bit across 10.5V - 160 �V/bit, 16 bit across 5.25V - 80 �V/bit, 16 bit across 21 mA - 320 nA/bit
MOD power 75mA @ 18...32V DC
North American temperature code T4
Repeatability 0.05 %
EFT/B immunity �4kV @ 5kHz on power ports, �3kV @ 5kHz on shielded output ports
Outputs 8 voltage or current
Output, voltage true
Relative humidity 5...95% noncondensing
ESD immunity 6 kV contact discharges, 8 kV air discharges
Vibration 5 G @ 10...500 Hz
Input, voltage false
Input, current false
DIN rail Compatible zinc-plated chromate-passivated steel DIN rail, You can use the EN50022 - 35 x 7.5 mm (1.38 x 0.30 in)
