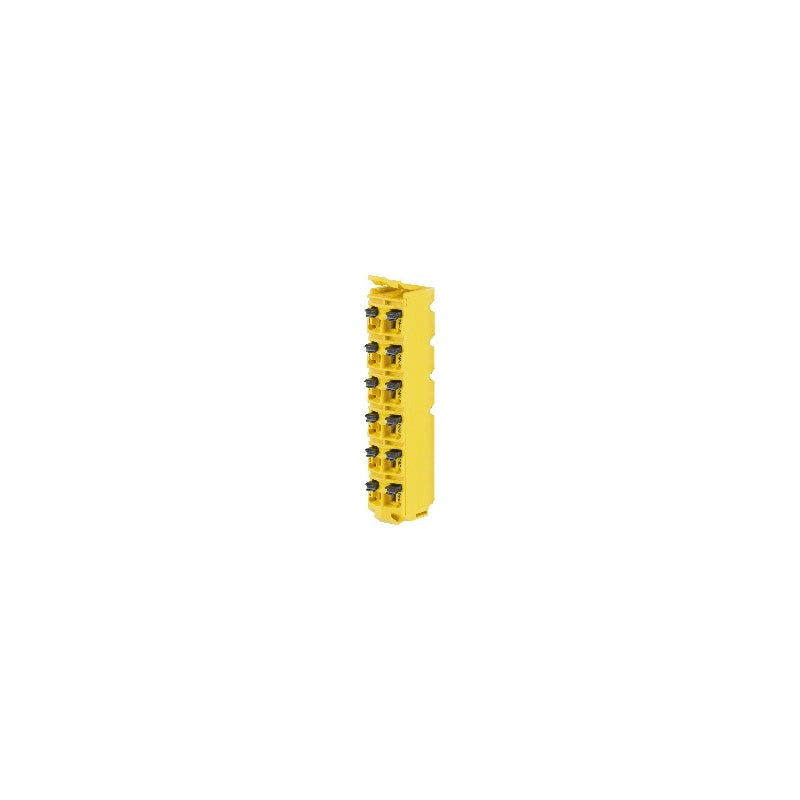

B&R X20TB52

SKU: X20TB52
(0)
$267.86
In stock
Usually ships within 24 hours
Factory pre-tested, ready for instant commissioning！

All industrial automation equipment comes complete with standard matching accessories and detailed step-by-step commissioning manuals. Unbox, install and commission your automation projects smoothly with full confidence.

Free shipping
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

Email +86 15221245849

Category: Safety technology > X20 System > Terminal blocks

Tool-free wiring using push-in technology Simple wire release using a lever Labeling option for each terminal connection Plain text labeling possible Access for standard test probes Customized coding possible This terminal block is used to wire the X20 SafeIO modules with 12 connections.

Technical Specifications

General information

  • Certifications
  • CE = Yes
  • UKCA = Yes
  • CRA (Cyber Resilience Act) = Not applicable
  • ATEX = Zone 2, II 3G Ex nA nC IIA T5 Gc IP20, Ta (see X20 user's manual) FTZÚ 09 ATEX 0083X
  • UL = cULus E115267 Industrial control equipment
  • DNV = Temperature: B (0 to 55°C) Humidity: B (up to 100%) Vibration: B (4 g) EMC: B (bridge and open deck)
  • LR = ENV1
  • KR = Yes
  • ABS = Yes
  • BV = EC33B Temperature: 5 - 55°C Vibration: 4 g EMC: Bridge and open deck

Terminal block

  • Connection cross section
  • Single-wire = 0.08 to 2.5 mm² / 28 to 14 AWG
  • Fine-stranded wires = 0.25 to 2.5 mm² / 24 to 14 AWG
  • With wire end sleeve = 0.25 to 1.5 mm² / 24 to 16 AWG
  • With double wire end sleeves = Up to 2x 0.75 mm²
  • Distance between contacts
  • Left - Right = 4.2 mm
  • Above - Below = 10.96 mm
  • Number of pins = 12, safety-keyed
  • Type of terminal block = Push-in terminal
  • Push-in force per contact = Typ. 10 N
  • Cable type = Only copper wires (no aluminum wires!)
  • Wire stripping length = 7 to 9 mm

Electrical properties

  • Nominal voltage = 240 VAC
  • Max. voltage = 300 VAC
  • Nominal current = 10 A / contact
  • Contact resistance = ≤5 mΩ

Ambient conditions

  • Temperature
  • Operation = Corresponds to the X20 module used
  • Relative humidity
