Category: I/O systems > X20 System > Motor controllers
2x outputs (H bridge) with PWM control and 24 to 39 VDC ±25% supply 3 A nominal current (3.5 A max current) 15 Hz to 50 kHz frequency, 16-bit Frequency mode with 10 to 6553.5 Hz or 1 to 655.35 Hz resolution.

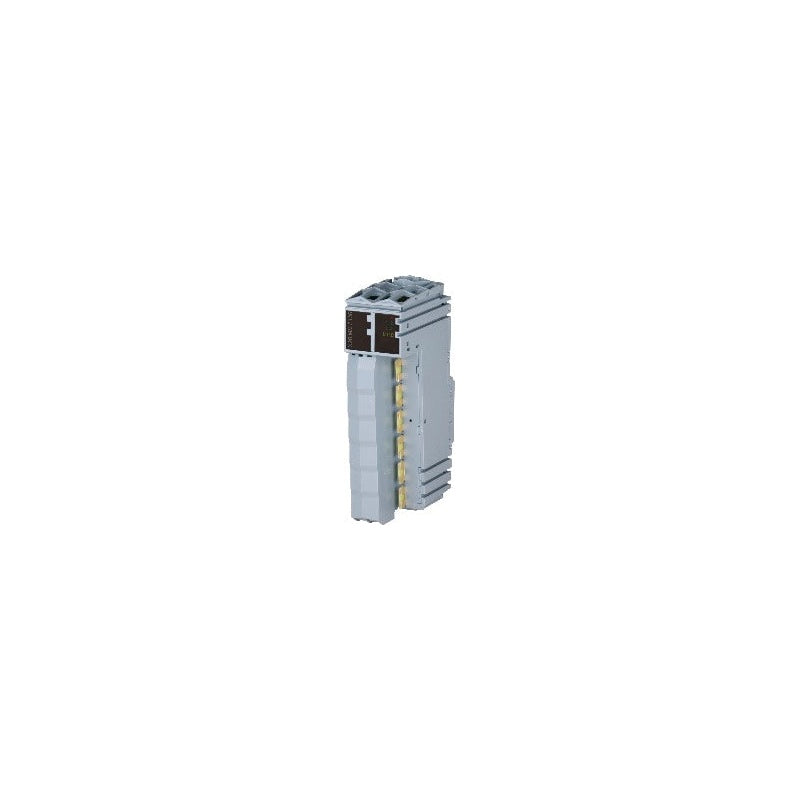

PWM resolution, 15-bit + sign, minimum 10 ns Configurable dither 2x 2 inputs 24V, can be configured as AB Sink connection 1-wire connections The motor bridge module is used to control 2 DC motors with a nominal voltage of 24 to 39 VDC ±25% at a nominal current up to 3 A.
The module can be reconfigured and used in current controller mode for controlling inductive loads.
The module is also equipped with 4 digital inputs, which can be used as incremental counters.
Each motor is controlled with a full-bridge (H-bridge). This enables the motors to be moved in both directions.
Technical Specifications
Short description
- I/O module = 2-channel PWM motor bridge, 2 AB incremental encoders
General information
- Diagnostics
- Module run/error = Yes, using LED status indicator and software
- Output = Yes, using LED status indicator and software
- I/O power supply = Yes, using software
- Power consumption
- External I/O
- 24 VDC = 2.45 W
- 48 VDC = 3.15 W
- Bus = 0.01 W
- Internal I/O = -
- Certifications
- CE = Yes
- UKCA = Yes
- CRA (Cyber Resilience Act) = In preparation
- ATEX = Zone 2, II 3G Ex nA nC IIA T5 Gc IP20, Ta (see X20 user's manual) FTZÚ 09 ATEX 0083X
- UL = cURus E225616 Power conversion equipment
- HazLoc = cCSAus 244665 Process control equipment for hazardous locations Class I, Division 2, Groups ABCD, T5
- DNV = Temperature: B (0 to 55°C) Humidity: B (up to 100%) Vibration: B (4 g) EMC: B (bridge and open deck)
- CCS = Yes
- LR = ENV1
- KR = Yes
- ABS = Yes
- BV = EC33B Temperature: 5 - 55°C Vibration: 4 g EMC: Bridge and open deck
- KC = Yes
- B&R ID code = 0x26B5
- Status indicators = I/O function per channel, operating state, module status
- Additional power dissipation caused by actuators (resistive) [W] = -
Digital inputs
- Input filter
- Hardware = <5 µs
- Software = -
- Switching threshold
- Low = <5 VDC
- High = >15 VDC
- Quantity = 4
- Nominal voltage = 24 VDC
- Input voltage = 24 VDC (-15% / +20%)
- Input current at 24 VDC = Approx. 1.3 mA
- Input circuit = Sink
- Connection type = 1-wire connections
- Input resistance = Typ. 18 kΩ
- Additional functions = 2x AB incremental encoder, 1x ABR counter, 2x event counter, 2x period duration/gate measurement
- Insulation voltage between channel and bus = 500 V eff
AB incremental encoder
- Quantity = 2
- Encoder inputs = 24 V, asymmetrical
- Counter size = 16-bit
- Input frequency = Max. 50 kHz
- Evaluation = 4x
- Signal form = Square wave pulse
PWM output
- Actuator power supply
- Supply = External
- Fuse = Required line fuse: Max. 10 A, slow-blow
- Quantity = 2
- Nominal voltage = 24 to 39 VDC ±25%
- Nominal current = 3 A
- Maximum current = 3.5 A (2 s)
- PWM frequency = Standard operating mode: 15 Hz to 50 kHz Frequency operating mode: 1 Hz to 6553.5 Hz SuperVibe operating mode: 1 Hz to 50 kHz
- Output protection = Thermal shutdown in the event of overcurrent or short circuit
- Execution = H bridge
- Configurable dither = Amplitude, frequency
- Period duration resolution (PWM/current operating mode) = 16-bit, min. 20 μs
- Frequency resolution = Frequency mode Scaling 0.1 Hz <3000 Hz: 0.1 Hz
- 3000 to 6553.5 Hz: 0.1 to 0.4 Hz Scaling 0.01 Hz <300 Hz: 0.01 Hz
- 300 to 655.35 Hz: 0.01 to 0.04 Hz SuperVibe mode Scaling 1 Hz <10 kHz: 1 Hz
- 10 to 50 kHz: 1 to 40 Hz Scaling 0.1 Hz <1000 Hz: 0.1 Hz
- 1000 to 6553.5 Hz: 0.1 to 4 Hz
- Phase shift PWM1 to PWM2 = 180° - if possible (according to operating mode)
- DC bus capacitance = 100 μF
- PWM pulse width = 15 bits plus sign ≥10 ns
- Frequency mode = 15 bits plus sign ≥10 ns
- Insulation voltage between channel and bus = 500 V eff
Electrical properties
- Electrical isolation = Channel isolated from bus Channel not isolated from channel
Operating conditions
- Mounting orientation
- Horizontal = Yes
- Installation elevation above sea level
- 0 to 2000 m = No limitation
- >2000 m = Reduction of ambient temperature by 0.5°C per 100 m
- Degree of protection per EN 60529 = IP20
Ambient conditions
- Temperature
- Operation
- Horizontal mounting orientation = -25 to 50°C
- Vertical mounting orientation = Not permitted
- Derating = See section "Derating".
- Storage = -40 to 85°C
- Transport = -40 to 85°C
- Relative humidity
- Operation = 5 to 95%, non-condensing
- Storage = 5 to 95%, non-condensing
- Transport = 5 to 95%, non-condensing
