B&R

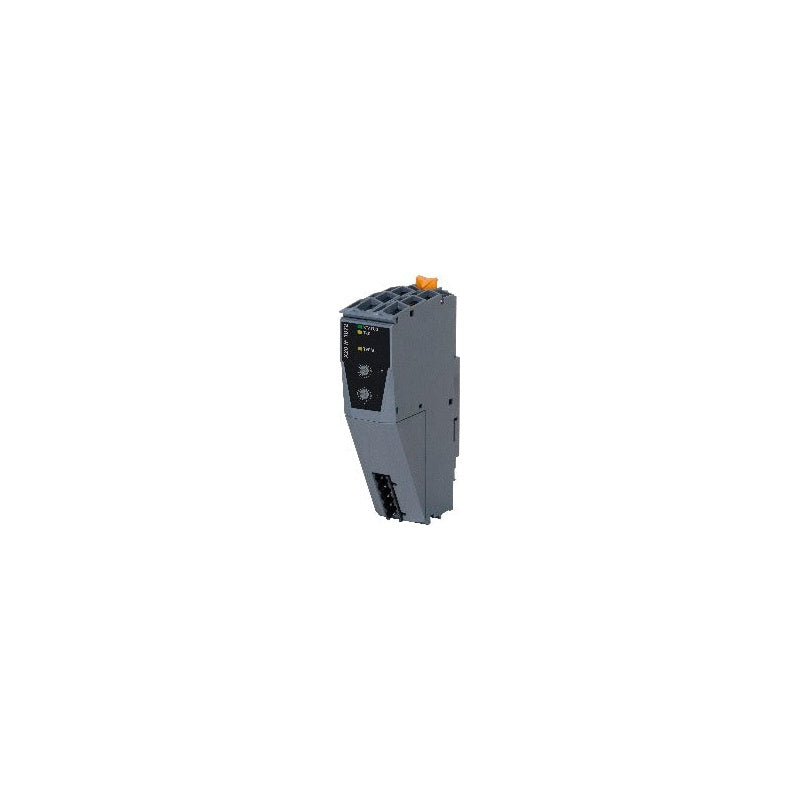

B&R X20IF1072

SKU: X20IF1072
(0)
$534.85
In stock
Usually ships within 24 hours
Factory pre-tested, ready for instant commissioning！

All industrial automation equipment comes complete with standard matching accessories and detailed step-by-step commissioning manuals. Unbox, install and commission your automation projects smoothly with full confidence.

Free shipping
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

Email +86 15221245849

Category: I/O systems > X20 System > X20 interface module communication

CAN bus connection Integrated terminating resistor The interface module is used for application-specific expansion of the X20 controllers.

It is equipped with a CAN bus interface.

Technical Specifications

Short description

  • Communication module = 1x CAN bus

General information

  • Diagnostics
  • Module status = Yes, using LED status indicator
  • Data transfer = Yes, using LED status indicator
  • Terminating resistor = Yes, using LED status indicator
  • Certifications
  • CE = Yes
  • UKCA = Yes
  • CRA (Cyber Resilience Act) = In preparation
  • ATEX = Zone 2, II 3G Ex nA nC IIA T5 Gc IP20, Ta (see X20 user's manual) FTZÚ 09 ATEX 0083X
  • UL = cULus E115267 Industrial control equipment
  • HazLoc = cCSAus 244665 Process control equipment for hazardous locations Class I, Division 2, Groups ABCD, T5
  • DNV = Temperature: B (0 to 55°C) Humidity: B (up to 100%) Vibration: B (4 g) EMC: B (bridge and open deck)
  • CCS = Yes
  • LR = ENV1
  • KR = Yes
  • ABS = Yes
  • BV = EC33B Temperature: 5 - 55°C Vibration: 4 g EMC: Bridge and open deck
  • KC = Yes
  • B&R ID code = 0x1F20
  • Status indicators = Module status, data transfer, terminating resistor
  • Power consumption = 0.79 W
  • Additional power dissipation caused by actuators (resistive) [W] = -

Interfaces

  • Interface IF1
  • Signal = CAN bus
  • Variant = 5-pin male multipoint connector
  • Max. distance = 1000 m
  • Transfer rate = Max. 1 Mbit/s
  • Terminating resistor = Integrated in module
  • Controller = SJA 1000

Electrical properties

  • Electrical isolation = PLC isolated from CAN (IF1)

Operating conditions

  • Mounting orientation
  • Horizontal = Yes
  • Vertical = Yes
  • Installation elevation above sea level
  • 0 to 2000 m = No limitation
  • >2000 m = Reduction of ambient temperature by 0.5°C per 100 m
  • Degree of protection per EN 60529 = IP20

Ambient conditions

  • Temperature
  • Operation
  • Horizontal mounting orientation = -25 to 60°C
  • Vertical mounting orientation = -25 to 50°C
  • Derating = -
  • Storage = -40 to 85°C
  • Transport = -40 to 85°C
  • Relative humidity
  • Operation = 5 to 95%, non-condensing
  • Storage = 5 to 95%, non-condensing
  • Transport = 5 to 95%, non-condensing

Mechanical properties

  • Note = Order 1x terminal block TB2105 separately.
  • Slot = In the X20 PLC
