B&R

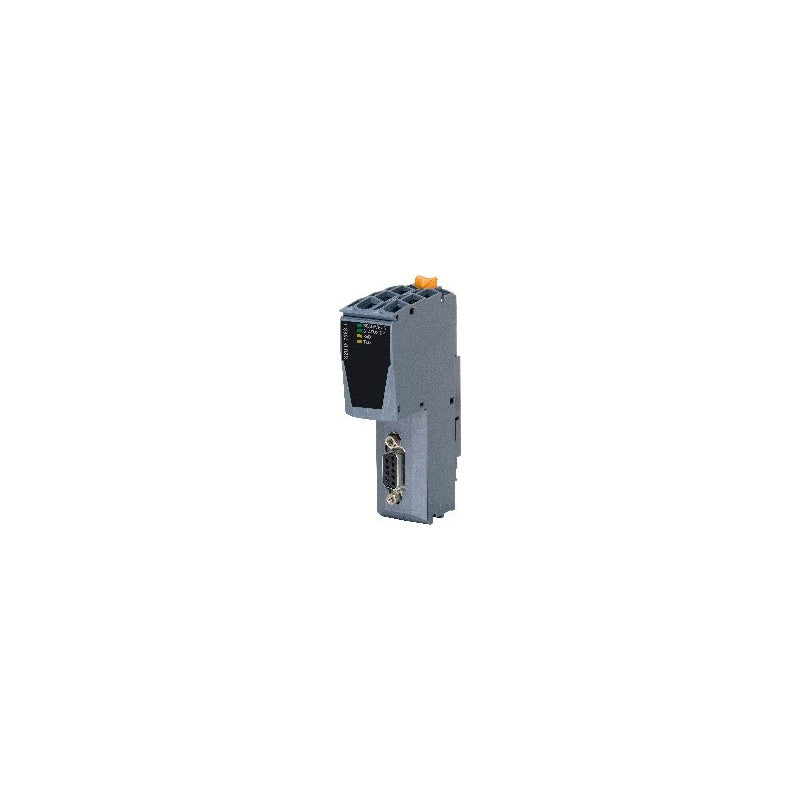

B&R X20IF1063-1

SKU: X20IF10631
(0)
$513.45
In stock
Usually ships within 24 hours
Factory pre-tested, ready for instant commissioning！

All industrial automation equipment comes complete with standard matching accessories and detailed step-by-step commissioning manuals. Unbox, install and commission your automation projects smoothly with full confidence.

Free shipping
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

Email +86 15221245849

Category: I/O systems > X20 System > X20 interface module communication

PROFIBUS DP V1 slave The interface module is equipped with a PROFIBUS DP V1 interface.

This allows the B&R system (I/O modules, POWERLINK, etc.) to be connected to systems from other manufacturers and makes it possible to quickly and easily transfer data in both directions.

The interface module can be operated in the X20 controllers or in the expandable X20BC1083 POWERLINK bus controller.

Technical Specifications

Short description

  • Communication module = 1x PROFIBUS DP V0/V1 slave

General information

  • Diagnostics
  • Module status = Yes, using LED status indicator and software
  • Network status = Yes, using LED status indicator and software
  • Data transfer = Yes, using LED status indicator
  • Certifications
  • CE = Yes
  • UKCA = Yes
  • CRA (Cyber Resilience Act) = In preparation
  • ATEX = Zone 2, II 3G Ex nA nC IIA T5 Gc IP20, Ta (see X20 user's manual) FTZÚ 09 ATEX 0083X
  • UL = cULus E115267 Industrial control equipment
  • HazLoc = cCSAus 244665 Process control equipment for hazardous locations Class I, Division 2, Groups ABCD, T5
  • DNV = Temperature: B (0 to 55°C) Humidity: B (up to 100%) Vibration: B (4 g) EMC: B (bridge and open deck)
  • CCS = Yes
  • LR = ENV1
  • KR = Yes
  • ABS = Yes
  • BV = EC33B Temperature: 5 - 55°C Vibration: 4 g EMC: Bridge and open deck
  • KC = Yes
  • B&R ID code = 0xA717
  • Status indicators = Module status, data transfer
  • Power consumption = 1.8 W
  • Additional power dissipation caused by actuators (resistive) [W] = -

Interfaces

  • Interface IF1
  • Cyclic data
  • Input data = Max. 244 bytes
  • Output data = Max. 244 bytes
  • Fieldbus = PROFIBUS DP V0/V1 slave
  • Variant = 9-pin female DSUB connector
  • Max. distance = 1200 m
  • Transfer rate = Max. 12 Mbit/s
  • Controller = netX100

Electrical properties

  • Electrical isolation = PLC isolated from PROFIBUS (IF1)

Operating conditions

  • Mounting orientation
  • Horizontal = Yes
  • Vertical = Yes
  • Installation elevation above sea level
  • 0 to 2000 m = No limitation
  • >2000 m = Reduction of ambient temperature by 0.5°C per 100 m
  • Degree of protection per EN 60529 = IP20

Ambient conditions

  • Temperature
  • Operation
  • Horizontal mounting orientation = -25 to 60°C
  • Vertical mounting orientation = -25 to 50°C
  • Derating = -
  • Storage = -40 to 85°C
  • Transport = -40 to 85°C
  • Relative humidity
  • Operation = 5 to 95%, non-condensing
  • Storage = 5 to 95%, non-condensing
  • Transport = 5 to 95%, non-condensing

Mechanical properties

  • Slot = In the X20 PLC and expandable bus controller X20BC1083
