Category: Motion control > ACOPOSmulti > Power supply modules > Wall mounting

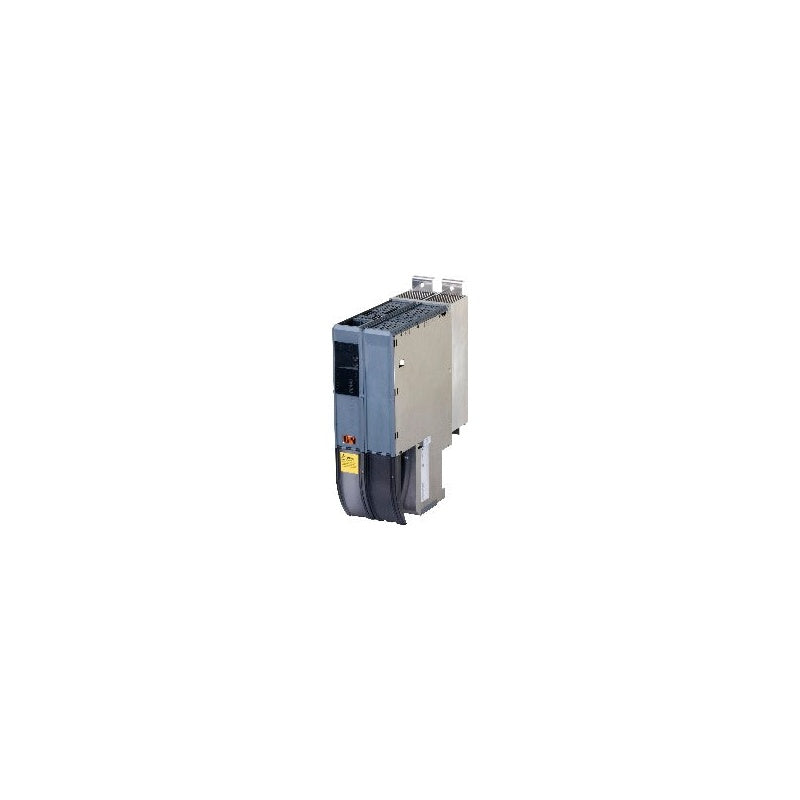

Wide input voltage range Capable of regeneration Integrated connection for temperature sensors 2 slots for ACOPOSmulti plug-in modules ACOPOSmulti power supply module, 22 A, AS, wall mounting.
Technical Specifications
General information
- Support
- Dynamic node allocation (DNA) = Yes
- Certifications
- CE = Yes
- UKCA = Yes
- CRA (Cyber Resilience Act) = Evaluation ongoing
- UL = cULus E225616 Power conversion equipment
- KC = Yes
- B&R ID code = 0xA7CF
- Cooling and mounting type = Wall mounting
- Slots for plug-in modules = 2
Mains connection
- Max. chargeable DC bus capacitance depending on mains voltage
- 230 VAC = 17.4 mF
- 400 VAC = 5.8 mF
- 480 VAC = 4 mF
- Variant
- L1, L2, L3, PE = Connector
- PE = M5 threaded bolt
- Shield connection = Yes
- Terminal connection cross section
- Flexible and fine-stranded wires
- With wire end sleeve = 0.5 to 16 mm²
- Approbation data
- UL/C-UL-US = 20 to 6 AWG
- CSA = 20 to 6 AWG
- Network configurations = TT, TN-S, TN-C-S
- Mains input voltage = 3x 220 to 3x 480 VAC ±10%
- Frequency = 50 / 60 Hz ±4%
- Installed load = Max. 15.6 kW
- Inrush current at 400 VAC = Max. 67 A
- Switch-on interval = >300 s
- Nominal switching frequency = 5 kHz
- Possible switching frequencies = 5 / 10 kHz
- Integrated line filter per EN 61800-3, category C3 = No
- Integrated regeneration choke = No
- Regenerative = Yes
- Power factor correction (PFC) = Yes
- Line fuse = Max. 66 A (gG fuses per IEC 60269-1 or Class CC, J, T) Max. 55 A (circuit breaker per EN 60947-2 or UL 489)
- Terminal cable cross section dimension of shield connection = 23 to 35 mm
DC bus connection
- Voltage
- Nominal = 750 VDC
- Reduction of continuous power depending on mains input voltage
- Mains input voltage <3x 400 VAC = 37.5 W/V * (400 V - Mains input voltage)
- Reduction of continuous power depending on DC bus voltage (U DC )
- U DC <750 VDC = P * (1 - U DC /750)
- Reduction of continuous power depending on switching frequency
- Switching frequency 5 kHz = No reduction
- Switching frequency 10 kHz = 0.27 kW/K (starting at 31°C)
- Reduction of continuous power depending on installation elevation
- Starting at 500 m above sea level = 1.5 kW per 1000 m
- Reduction of peak power depending on mains input voltage
- Mains input voltage <3x 400 VAC = 94 W/V * (400 V - Mains input voltage)
- Power dissipation depending on switching frequency
- Switching frequency 5 kHz = [0.28*P²+7.9*P+40] W
- Switching frequency 10 kHz = [0.9*P²+5.3*P+110] W
- Protective measures
- Overload protection = Yes
- Short-circuit and ground fault protection = No
- Continuous power (supply and regeneration) = 15 kW
- Peak power (supply and regeneration) = 37.5 kW
- DC bus capacitance = 495 µF
- Variant = ACOPOSmulti backplane
24 VDC power supply
- Input voltage = 25 VDC ±1.6%
- Input capacitance = 4.7 µF
- Max. power consumption = 27 W + P SLOT1 + P SLOT2 + P 24 V Out + P Fan8BVF...
- Variant = ACOPOSmulti backplane
24 VDC Out
- Output voltage
- DC bus voltage (U DC ): 260 to 315 VDC = 25 VDC * (U DC / 315)
- DC bus voltage (U DC ): 315 to 800 VDC = 24 VDC ±6%
- Quantity = 2
- Fuse protection = 250 mA (slow-blow) electronic, automatic reset
Filter fan connection
- Protective measures
- Overload protection = No
- Short-circuit proof = Yes
- Open-circuit monitoring = No
- Undervoltage monitoring = No
- Output voltage = 24 V +5.8% / -0.1%
- Continuous current = 4.2 A
- Max. overcurrent limiting = 10 A
Trigger inputs
- Electrical isolation
- Input - Power supply module = Yes
- Input - Input = Yes
- Input voltage
- Nominal = 24 VDC
- Maximum = 30 VDC
- Switching threshold
- Low = <5 V
- High = >15 V
- Switching delay
- Rising edge = 52 μs ±0.5 μs (digitally filtered)
- Falling edge = 53 μs ±0.5 μs (digitally filtered)
- Quantity = 2
- Circuit = Sink
- Input current at nominal voltage = Approx. 10 mA
- Modulation compared to ground potential = Max. ±38 V
