B&R 8AC122.60-3

SKU: 8AC122.60-3
(0)
$494.92
In stock
Usually ships within 24 hours
Factory pre-tested, ready for instant commissioning！

All industrial automation equipment comes complete with standard matching accessories and detailed step-by-step commissioning manuals. Unbox, install and commission your automation projects smoothly with full confidence.

Free shipping
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

Email +86 15221245849

Category: Motion control > ACOPOS > Plug-in modules

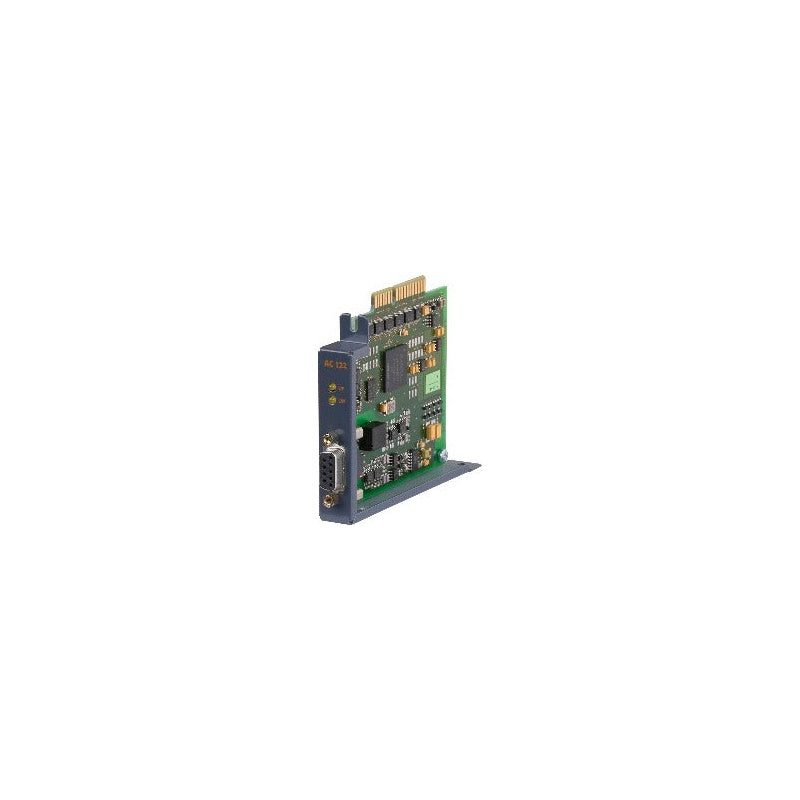

Resolver interface for installation in ACOPOS servo drives Monitors encoder input signals Resolver type BRX ACOPOS plug-in module, resolver interface 10 kHz.

Technical Specifications

General information

  • Certifications
  • CE = Yes
  • UKCA = Yes
  • CRA (Cyber Resilience Act) = Non-compliant
  • UL = cULus E225616 Power conversion equipment
  • KC = Yes
  • Module type = ACOPOS plug-in module
  • B&R ID code = 0xA48B
  • Slot = Slots 2, 3 and 4
  • Max. cable length = 100 m
  • Power consumption = Max. 2.5 W

Resolver inputs

  • Reference output
  • Output current = Max. 50 mA eff
  • Differential voltage = Typ. 3.4 V eff
  • Frequency = 10 kHz
  • Signal transmission = Differential signals
  • Electrical isolation
  • Resolver - ACOPOS = No
  • Resolver
  • Input frequency = 10 kHz
  • Input voltage = 3 to 7 V rms
  • Number of pins = 2-pin
  • Type = BRX
  • Max. phase shift = ±45°
  • Max. elec. angular error = ±10 angular minutes
  • Nominal transformation ratio = 0.5 ±10%
  • Sine/Cosine inputs
  • Input impedance at 10 kHz (per pin) = 10.4 kΩ - j 11.1 kΩ
  • Encoder-ACOPOS electrical isolation = No, common-mode voltage on the sine/cosine inputs max. ±20 V
  • Angular position resolution = 14 bits/rev
  • Module-side connection = 9-pin female DSUB
  • Status indicators = UP/DN LEDs
  • Bandwidth = 2.5 kHz
  • Encoder monitoring = Yes
  • Accuracy = ±8 angular minutes

Ambient conditions

  • Temperature
  • Operation
  • Nominal = 5 to 40°C
  • Maximum = 55°C
  • Storage = -25 to 55°C
  • Transport = -25 to 70°C
  • Relative humidity
  • Operation = 5 to 85%
  • Storage = 5 to 95%
  • Transport = Max. 95% at 40°C
