The AX5000 single-channel servo drives offer optimal function, flexibility and cost-effectiveness. The components required for operation, such as power...

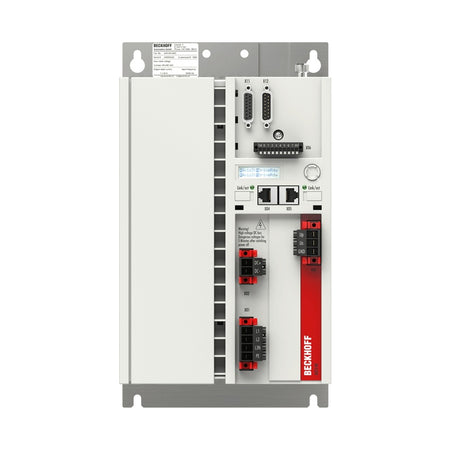

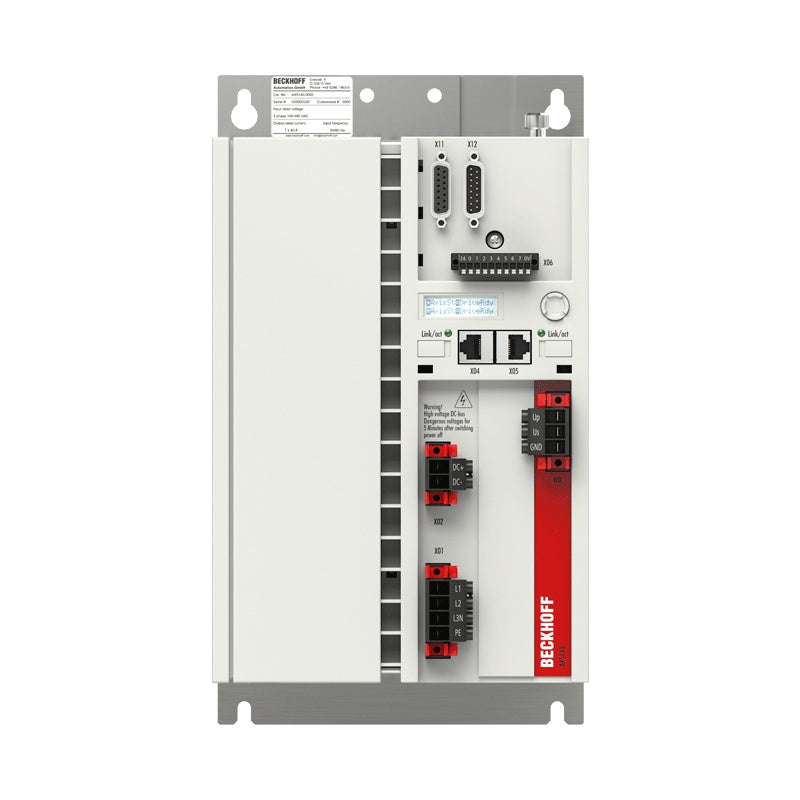

AX5118 Function servo drive Channels 1 Rated supply voltage 3 x 100…480 V AC ±10% DC link voltage max. 875 V DC Rated output current (channel) 18 A Peak output current (channel) 36 A Feedback SinCos 1 V PP , resolver, EnDat ® 2.1, HIPERFACE ® , BiSS ® B, OCT System bus EtherCAT Drive profile SERCOS™ profile for servo drives according to IEC 61800-7-204 (SoE) Ambient temperature (operation) 0…50°C (see documentation) Approvals/markings CE, cULus Technical data Dimensions To top Dimensions AX5118 Height without connectors 274 mm Depth without connectors 232 mm Width 185 mm
Availability: regular delivery
Place your order before 14:00 for earliest possible shipment handover. With round-the-clock transit operated by our partnered global logistics providers, parcels reach most international destinations following routine customs processing. Normal delivery takes 2–6 business days subject to customs clearance progress.Shipping fees will be charged for all orders under USD 500, and the exact shipping cost will be determined and collected by our logistics carriers. Shipments to remote international regions will incur additional courier surcharges to offset extra cross-border transportation costs.
Factory warranty service is not applicable to this industrial control equipment, and extended warranty packages are not provided for this item.
| Variant | Quantity | Price | Total |
|---|---|---|---|
|
Never Used Surplus
AX5118-0000-0200
|
|
||
|
Used
AX5118-0000-0200-Used
|
|
Product subtotal
