5069 Series Technical Specification Datasheet
1. 5069-L310ERMK CompactLogix Controller Specifications
1.1 Model Overview & Suffix Definition
Series: Allen‑Bradley CompactLogix 5380 Standard Motion Controller
Model Suffix Meaning:
- L310: 1MB user program memory base model
- ER: Dual Gigabit EtherNet/IP ports with standard power configuration
- M: Integrated native motion control function
- K: Conformal coated PCB, designed for harsh industrial environments
1.2 Core Processor & Memory Specifications
-
User Program Memory: 1 MB program and data memory
-
Non-Volatile Storage: Standard 2GB SD card (1784‑SD2) for program backup, log storage and firmware update
-
Processor: Quad-core industrial processor
-
Local I/O Expansion: Maximum 8 pieces of 5069 series local Compact 5000 I/O modules
-
Remote Device Nodes: Support up to 24 EtherNet/IP I/O and intelligent device nodes
1.3 Motion Control Performance
-
Built-in CIP Motion Axes: 4 native EtherNet/IP servo control axes
-
Max Expandable Axes: Support up to 256 axes distributed servo synchronous control
-
Supported Motion Functions: Electronic gear, electronic cam, position closed-loop control, pulse latch, multi-axis synchronous motion, DLR ring network real-time motion synchronization
1.4 Communication Interface Specifications
- Dual Gigabit EtherNet/IP Ports (NET A1 / NET A2):
- Baud Rate: 10/100/1000Mbps full-duplex adaptive
- Topology: Star, Linear, DLR Device Level Ring
- Core Functions: Dual IP configuration, CIP security, real-time I/O message, message routing
- Isolation Voltage: 300V continuous electrical isolation
-
USB 2.0 Type-B Port: Local program download, firmware upgrade and device debugging
-
SD Card Slot: Firmware update, program backup and fault log export
1.5 Electrical & Power Specifications
-
Input Voltage: 18～32 VDC (MOD POWER)
-
Max Power Consumption: 8.5 W
-
Inrush Current: 850mA / 125ms
-
Module Bypass Output: 9.55A maximum @18~32VDC
-
Power Terminals: MOD POWER (CPU main power), SA POWER (I/O bypass power)
1.6 Physical Dimensions & Installation
-
Dimension (H×W×D): 143.97 × 98.10 × 136.81 mm
-
Net Weight: Approx. 0.768 kg
-
Installation: Standard 35mm DIN rail mounting
1.7 Environmental Ratings (K Coating Version Exclusive)
-
Operating Temperature: 0℃ ～ +60℃
-
Storage Temperature: -40℃ ～ +85℃
-
Relative Humidity: 5%～95%RH, non-condensing
-
Shock Resistance: 30g (IEC 60068‑2‑27 compliant)
-
Vibration Resistance: 5m/s², 5～500Hz (IEC 60068‑2‑6 compliant)
Conformal Coating Feature: Full PCB conformal coated protection, suitable for high humidity, dusty, mild corrosive, cold chain and port industrial environments. Standard ERM models have no protective coating.
1.8 Software Compatibility & Functions
-
Programming Software: Studio 5000 Logix Designer (V32 and above)
-
Compatible Modules: Full series of 5069 Compact 5000 digital, analog, relay, RTD and high-speed counter I/O modules
-
Security Functions: Controller firmware encryption, operation log recording, role permission management, program change detection protection
1.9 Certification & Warranty
-
Certifications: CE, RoHS, UL, CSA industrial certifications
-
Factory Warranty: 1-year standard manufacturer warranty
-
Origin: Assembled in Singapore
1.10 Series Model Comparison Table
| Model Number |
Key Configuration Differences |
| 5069‑L310ER |
1MB memory, no motion control, no conformal coating |
| 5069‑L310ERM |
1MB memory, 4-axis motion control, no conformal coating |
| 5069‑L310ERMK |
1MB memory, 4-axis motion control, full conformal coating for harsh environments |

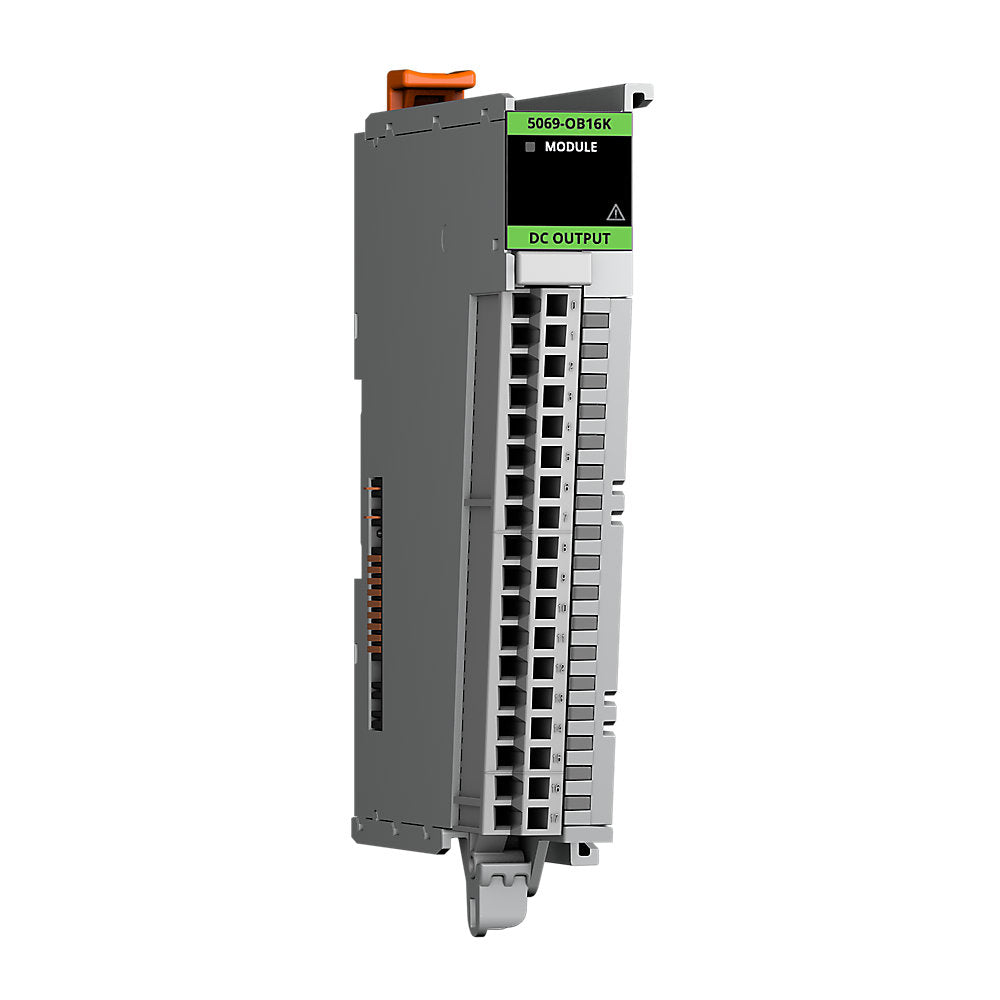

2. 5069-OB16K Compact 5000 Output Module Specifications
2.1 Model Overview & Definition
Series: Allen‑Bradley Compact 5000 Digital DC Output Module
Model Suffix Meaning:
- OB16: 16-point DC sourcing digital output module
- K: Conformal coated PCB, harsh environment protected version
General Description: The 5069-OB16K is a 16-channel high-density sourcing output module designed for CompactLogix 5380/5480 systems, providing reliable 24VDC field output control with full conformal coating protection for industrial harsh conditions.
2.2 Electrical Specifications
-
Output Type: Sourcing (PNP) DC Digital Output
-
Number of Channels: 16 isolated output points
-
Rated Supply Voltage: 10～32 VDC
-
Rated Output Current (Per Channel): 0.5A @ 24VDC
-
Total Module Current: 8A maximum full load
-
Output On-State Voltage Drop: ≤0.3V
-
Off-State Leakage Current: ≤100μA
-
Response Time: ≤100μs typical
2.3 Communication & System Features
-
Communication Protocol: EtherNet/IP (Producer/Consumer mode)
-
System Compatibility: Fully compatible with 5069-L310ERMK and all Compact 5000 series controllers
-
Diagnostic Indicators: 1 module status LED, 16 individual channel status LEDs
-
Function Support: Real-time output control, fault diagnosis, overcurrent protection, hot swap support
2.4 Physical & Mechanical Parameters
-
Dimension (H×W×D): 144.57 × 22 × 105.42 mm
-
Net Weight: Approx. 175g
-
Installation: Standard 35mm DIN rail mounting
-
Terminal Type: Compatible with 5069-RTB18 screw/spring terminal base
-
Protection Grade: IP20
2.5 Environmental Ratings (K Version Exclusive)
-
Operating Temperature: 0℃ ～ +60℃
-
Storage Temperature: -40℃ ～ +85℃
-
Relative Humidity: 5%～95%RH, non-condensing
-
Shock Resistance: 30g (IEC 60068‑2‑27)
-
Vibration Resistance: 5m/s², 5～500Hz (IEC 60068‑2‑6)
K Version Advantage: Full conformal coated PCB prevents corrosion, dust, moisture and condensation damage, suitable for chemical, food & beverage, port and outdoor cabinet industrial environments, compared with standard non-coated 5069-OB16.
2.6 Certification & Warranty
-
Certifications: CE, RoHS, UL, CSA
-
Warranty: 1-year factory standard warranty
-
Origin: Assembled in Singapore
2.7 OB16 Series Model Comparison
| Model Number |
Key Differences |
| 5069-OB16 |
16-point sourcing output, standard version, no conformal coating |
| 5069-OB16K |
16-point sourcing output, full conformal coating for harsh environments |
