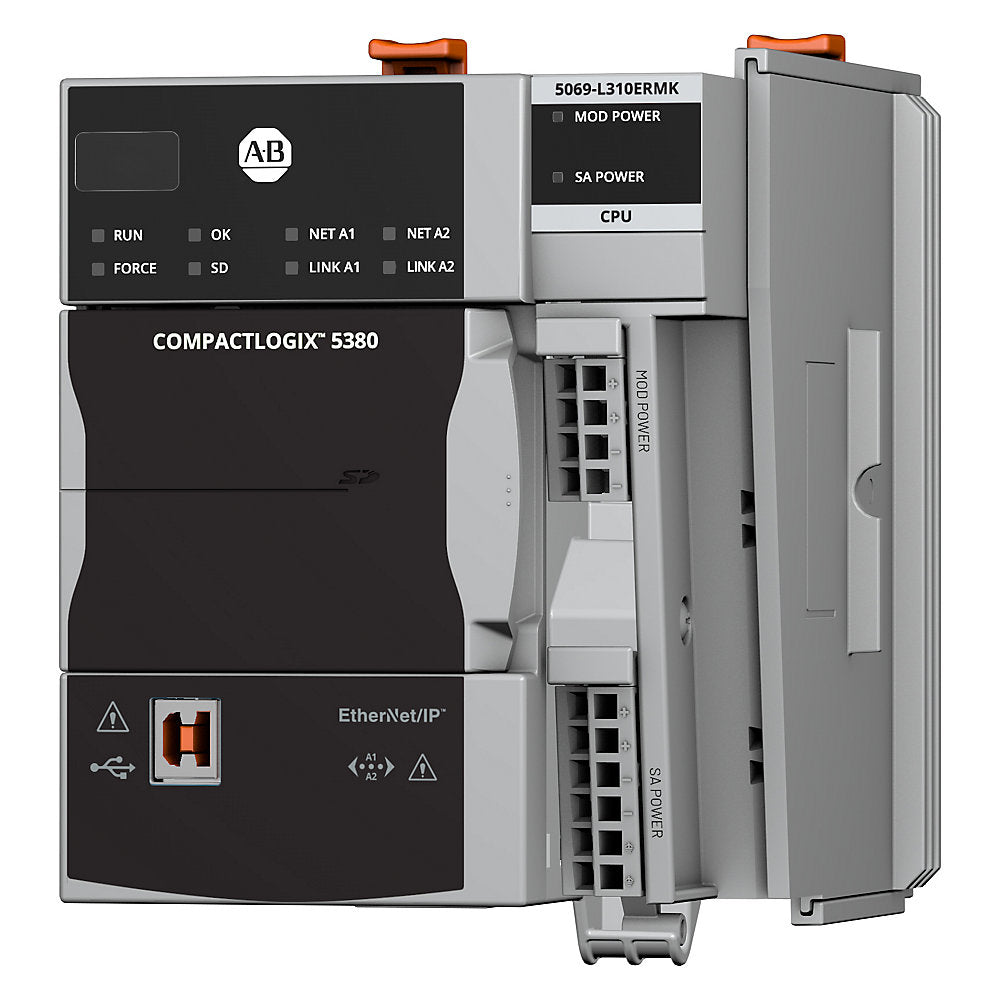

Allen-Bradley 5069-L310ERMK

SKU: 5069-L310ERMK
(0)
$6,199.99
In stock
Usually ships within 24 hours
Factory pre-tested, ready for instant commissioning！

All industrial automation equipment comes complete with standard matching accessories and detailed step-by-step commissioning manuals. Unbox, install and commission your automation projects smoothly with full confidence.

Free shipping
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

Email +86 15221245849

5069-L310ERMK Controller Technical Specification Datasheet

1. Model Overview & Suffix Definition

Series: Allen‑Bradley CompactLogix 5380 Standard Motion Controller

Model Suffix Meaning:

  • L310: 1MB user program memory base model
  • ER: Dual Gigabit EtherNet/IP ports with standard power configuration
  • M: Integrated native motion control function
  • K: Conformal coated PCB, designed for harsh industrial environments

2. Core Processor & Memory Specifications

  • User Program Memory: 1 MB program and data memory
  • Non-Volatile Storage: Standard 2GB SD card (1784‑SD2) for program backup, log storage and firmware update
  • Processor: Quad-core industrial processor
  • Local I/O Expansion: Maximum 8 pieces of 5069 series local Compact 5000 I/O modules
  • Remote Device Nodes: Support up to 24 EtherNet/IP I/O and intelligent device nodes

3. Motion Control Performance

  • Built-in CIP Motion Axes: 4 native EtherNet/IP servo control axes
  • Max Expandable Axes: Support up to 256 axes distributed servo synchronous control
  • Supported Motion Functions: Electronic gear, electronic cam, position closed-loop control, pulse latch, multi-axis synchronous motion, DLR ring network real-time motion synchronization

4. Communication Interface Specifications

  • Dual Gigabit EtherNet/IP Ports (NET A1 / NET A2):
    • Baud Rate: 10/100/1000Mbps full-duplex adaptive
    • Topology: Star, Linear, DLR Device Level Ring
    • Core Functions: Dual IP configuration, CIP security, real-time I/O message, message routing
    • Isolation Voltage: 300V continuous electrical isolation
  • USB 2.0 Type-B Port: Local program download, firmware upgrade and device debugging
  • SD Card Slot: Firmware update, program backup and fault log export

5. Electrical & Power Specifications

  • Input Voltage: 18～32 VDC (MOD POWER)
  • Max Power Consumption: 8.5 W
  • Inrush Current: 850mA / 125ms
  • Module Bypass Output: 9.55A maximum @18~32VDC
  • Power Terminals: MOD POWER (CPU main power), SA POWER (I/O bypass power)

6. Physical Dimensions & Installation

  • Dimension (H×W×D): 143.97 × 98.10 × 136.81 mm
  • Net Weight: Approx. 0.768 kg
  • Installation: Standard 35mm DIN rail mounting

7. Environmental Ratings (K Coating Version Exclusive)

  • Operating Temperature: 0℃ ～ +60℃
  • Storage Temperature: -40℃ ～ +85℃
  • Relative Humidity: 5%～95%RH, non-condensing
  • Shock Resistance: 30g (IEC 60068‑2‑27 compliant)
  • Vibration Resistance: 5m/s², 5～500Hz (IEC 60068‑2‑6 compliant)
Conformal Coating Feature: Full PCB conformal coated protection, suitable for high humidity, dusty, mild corrosive, cold chain and port industrial environments. Standard ERM models have no protective coating.

8. Software Compatibility & Functions

  • Programming Software: Studio 5000 Logix Designer (V32 and above)
  • Compatible Modules: Full series of 5069 Compact 5000 digital, analog, relay, RTD and high-speed counter I/O modules
  • Security Functions: Controller firmware encryption, operation log recording, role permission management, program change detection protection

9. Certification & Warranty

  • Certifications: CE, RoHS, UL, CSA industrial certifications
  • Factory Warranty: 1-year standard manufacturer warranty
  • Origin: Assembled in Singapore

10. Series Model Comparison Table

Model Number Key Configuration Differences
5069‑L310ER 1MB memory, no motion control, no conformal coating
5069‑L310ERM 1MB memory, 4-axis motion control, no conformal coating
5069‑L310ERMK 1MB memory, 4-axis motion control, full conformal coating for harsh environments
