Allen-Bradley

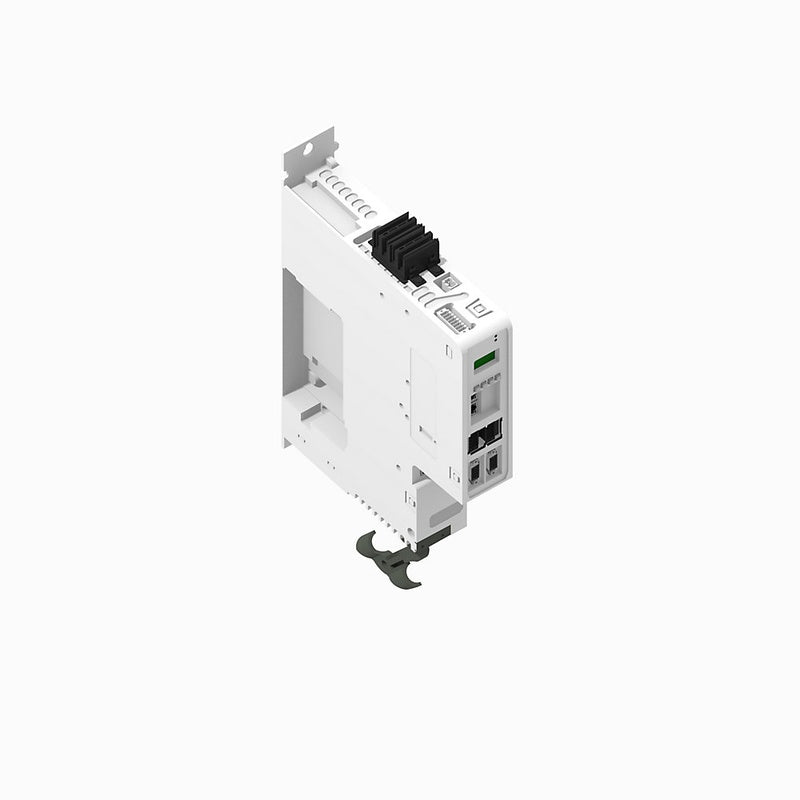

Allen-Bradley 2198-D012-ERS4 | Industrial Automation Component

SKU: 2198-D012-ERS4
(2)
$2,960.00
In stock
Usually ships within 24 hours
Factory pre-tested, ready for instant commissioning！

All industrial automation equipment comes complete with standard matching accessories and detailed step-by-step commissioning manuals. Unbox, install and commission your automation projects smoothly with full confidence.

Free shipping
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

Email +86 18017464056

Kinetix 5700 Dual Axis Safe Speed Drive

2x5.0 Arms continuous, 2x12.0 Arms Peak output current - Advanced Safety

Specifications

  • Altitude: Storage range (nonoperating): 3000 m (9843 ft) during transport
  • Bandwidth: 400 Hz @ velocity loop, maximum
  • Continuous output current: 7 A, zero to peak
  • Continuous output current (rms): 5 A
  • Continuous power output, nom: 3.4 kW @ 324...528V rms, 3-phase
  • Control power current: 5.5A @ 24V DC current, maximum (with maximum brake current)
  • DC input current: 5.3A @ 458...747V DC
  • Degree of pollution: (IEC 61800-5-1): 2
  • Depth: 267.5 mm
  • Height: 358 mm
  • Internal capacitance: 165 ¦ÌF
  • Nonoperating temperature: -40 ¡ãC
  • Operating temperature: 0 ¡ãC
  • Peak output current: 17.6 A, zero to peak
  • Peak output current (rms): 12.5 A
  • Protection class: (IEC 60529): IP20
  • PWM frequency: 4 khz
  • Rated power output: 82 W @ 60%
  • Relative humidity: Operating: 5¡­95% noncondensing, Non-operating: 5¡­95% noncondensing
  • Shock: 15 G, 11 ms half-sine pulse (3 pulses in each direction of 3 mutually perpendicular directions)
  • Vibration: 2 G @ 55...500 Hz, peak constant acceleration
  • Weight: 4.16 kg
  • Width: 55 mm
