Allen-Bradley

Allen-Bradley 2080-TRIMPOT6 | Industrial Automation Component

SKU: 2080-TRIMPOT6
(2)
$121.79
In stock
Usually ships within 24 hours
Factory pre-tested, ready for instant commissioning！

All industrial automation equipment comes complete with standard matching accessories and detailed step-by-step commissioning manuals. Unbox, install and commission your automation projects smoothly with full confidence.

Free shipping
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

Email +86 18017464056

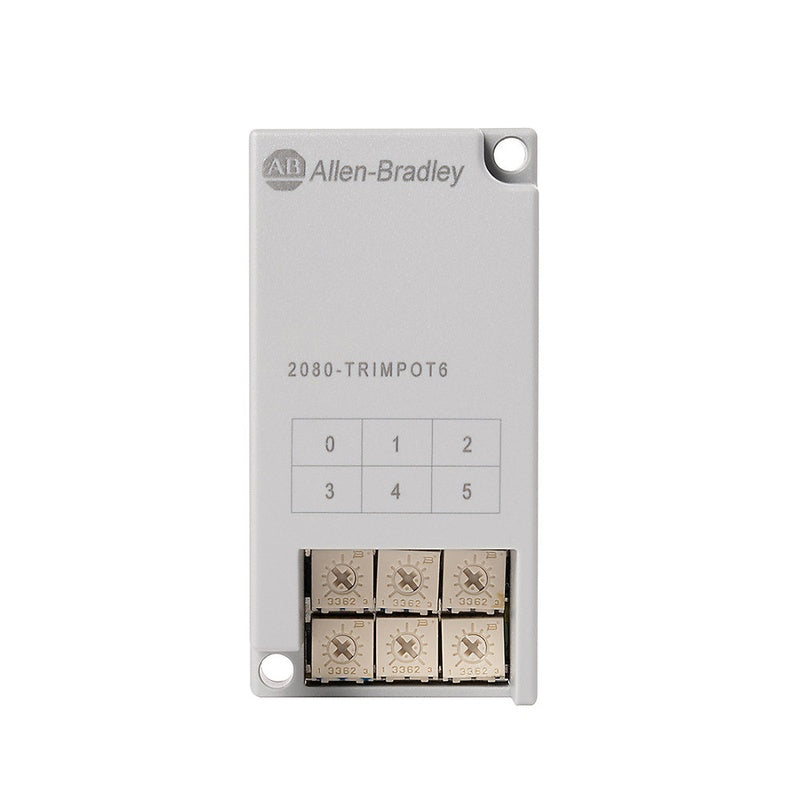

Micro800 6 Point Trim Pot Plug-In

2080 Micro800 System, 6-ch Trim Pot Analog Input

Specifications

  • I/O Status Indication: None
  • Temperature Rating: -20¡­65 ¡ãC (-4¡­149 ¡ãF)
  • Analogue inputs configurable: false
  • Analogue outputs configurable: false
  • Data range: 0 to 255
  • Emissions: CISPR 11 (IEC 61000-6-4): Class A
  • ESD immunity: IEC 61000-4-2: 6 kV contact discharges, 8 kV air discharges
  • Input, current: false
  • Input, resistance thermometer: false
  • Input, resistor: false
  • Input signal, configurable: false
  • Input, thermocouple: false
  • Input, voltage: false
  • Mounting torque: 0.2 nm
  • Nonoperating temperature: -40...85 ¡ãC (-40...185 ¡ãF), IEC 60068-2-1 (Test Ab, Unpackaged Nonoperating Cold), IEC 60068-2-2 (Test Bb, Unpackaged Nonoperating Dry Heat), IEC 60068-2-14 (Test Na, Unpackaged Nonoperating Thermal Shock)
  • North American temperature code: T4
  • Number of inputs: 6-channel, Trimpot
  • Operating altitude: 2000 m
  • Operating temperature: -20...65 ¡ãC (-4...149 ¡ãF): IEC 60068-2-1 (Test Ad, Operating Cold), IEC 60068-2-2 (Test Bd, operating dry heat), IEC 60068-2-14 (Test Nb, operating thermal shock)
  • Output, current: false
  • Output signal configurable: false
  • Output, voltage: false
  • Radiated RF immunity: IEC 61000-4-3: 10V/m with 1 kHz sine-wave 80% AM from 80...2000 MHz, 10V/m with 200 Hz 50% pulse 100% AM @ 900 MHz, 10V/m with 200 Hz 50% pulse 100% AM @ 1890 MHz, 10V/m with 1 kHz sine-wave 80% AM from 2000...2700 MHz,
  • Relative humidity: IEC 60068-2-30 (Test Db, unpackaged dA heat), 5...95% noncondensing
  • Resolution of the analogue outputs: 14 bit
  • Shock: IEC 60068-2-27 (Test Ea, unpackaged shock): DIN rail mount: 25 g, nonoperating, Panel Mount: 35 g nonoperating
  • SIL according to IEC 61508: None
  • Suitable for safety functions: false
  • Surrounding air temperature, max: 65 ¡ãC
  • Vibration: IEC 60068-2-6 (Test Fc, operating), 2 G @ 10...500 Hz
  • Product Series: A
