Allen-Bradley

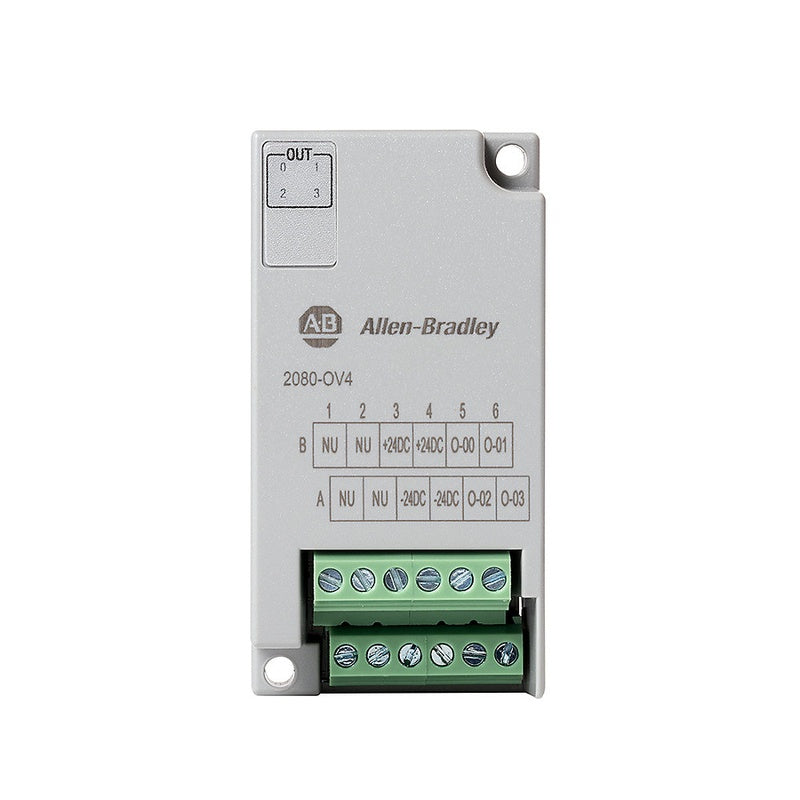

Allen-Bradley 2080-OV4 | Industrial Automation Component

SKU: 2080-OV4
(5)
$76.02
In stock
Usually ships within 24 hours
Factory pre-tested, ready for instant commissioning！

All industrial automation equipment comes complete with standard matching accessories and detailed step-by-step commissioning manuals. Unbox, install and commission your automation projects smoothly with full confidence.

Free shipping
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

Email +86 18017464056

Micro800 4 Point Sink Output

2080 Micro800 System, 4-pt Digital Output, 12/24V DC, Sink

Specifications

  • Consist Of: Screws
  • I/O Isolation: None
  • Output: 4 Point, 12/24V Dc, Sink
  • Temperature Rating: -20¡­65 ¡ãC (-4¡­149 ¡ãF)
  • Digital inputs configurable: false
  • Digital outputs configurable: false
  • Isolation voltage: 50V (continuous), basic insulation type, inputs to outputs, I/Os to backplane type tested for 60 s @ 720V DC, I/Os to backplane
  • Mounting torque: 0.2 nm
  • Nonoperating temperature: 40 to 85 ¡ãC
  • North American temperature code: T4
  • Number of I/O: 4 (sink outputs)
  • Off-state leakage current, max: 10 ¦ÌA
  • ON-state current, max: Steady state: 0.5A @ 2A, surge for 2 s, minimum
  • On-state current, min: 5.0mA @ 10V DC
  • ON-state voltage, max: 30V DC
  • On-state voltage, min: 10V DC
  • On-state voltage, nom: 24V DC
  • Operating temperature: -20 to 65 ¡ãC
  • Power supply voltage: 10.8V DC, minimum, 30V DC, maximum
  • Redundancy: false
  • Relative humidity: 5...95% noncondensing
  • Shock: Operating: 25 g
  • SIL according to IEC 61508: None
  • Status indicator: 4 yellow
  • Surrounding air temperature, max: 65 ¡ãC
  • Terminal base screw torque, max: 0.22...0.25 Nm (1.95...2.21 in-lb) (using a 2.5 mm (0.10 in.) flat-blade screwdriver)
  • Type of digital output: Transistor
  • Type of electric connection: Screw connection
  • Type of output voltage: DC
  • Type of voltage (input voltage): DC
  • Vibration: 2.0 G @ 10¡­500 Hz
  • Wire size: 0.2... 2.5 mm2 (24...12 AWG) solid or stranded copper wire rated @ 90 ¡ãC (194 ¡ãF), or greater, insulation maximum
