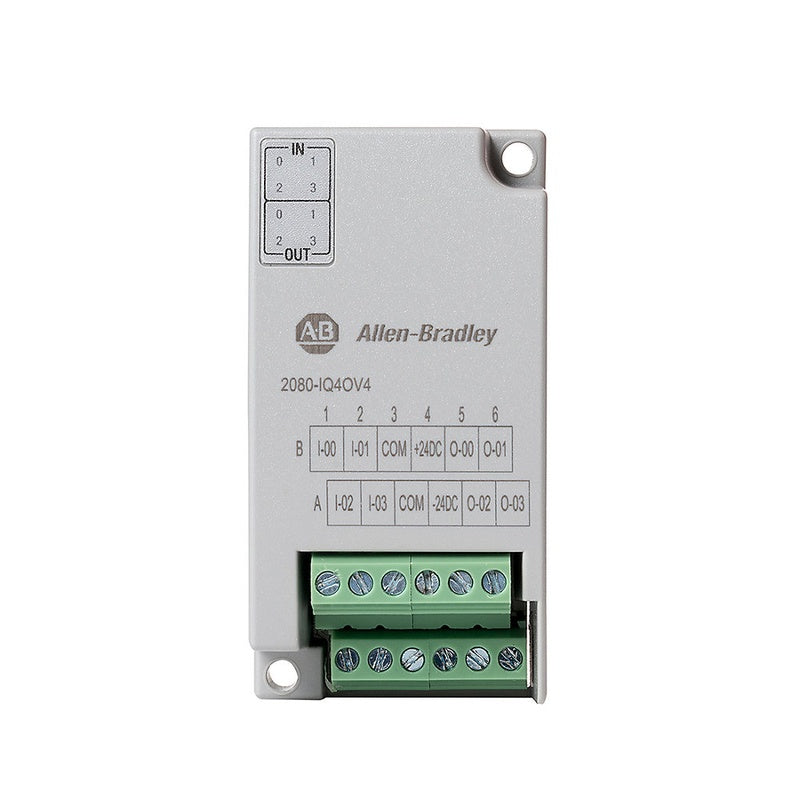

Allen-Bradley 2080-IQ4OV4 | Industrial Automation Component

SKU: 2080-IQ4OV4
(5)
$97.37
In stock
Usually ships within 24 hours
Factory pre-tested, ready for instant commissioning！

All industrial automation equipment comes complete with standard matching accessories and detailed step-by-step commissioning manuals. Unbox, install and commission your automation projects smoothly with full confidence.

Free shipping
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

Email +86 18017464056

Micro800 8 Point Digital Combo (Sink)

2080 Micro800 System, 8-pt Combo, 4-pt Digital Input, 12/24V DC,Sink/Source, IEC3, and 4-pt Digital Output, 12/24V DC, Sink

Specifications

  • Consist Of: Screws
  • I/O Isolation: None
  • I/O Status Indication: LED
  • Output: 4 Point, 12/24V DC, Sink
  • Digital inputs configurable: false
  • Digital outputs configurable: false
  • IEC input compatibility: Type 3
  • Input filter time: ON to OFF: 8...10 ms AC/DC
  • Input impedance: 0...3V, >4 K?, 3...12V, 3.5 K? minimum, 12...30V, >4 K? <10 K?
  • Isolation voltage: 50V (continuous), basic insulation type, inputs to outputs, I/Os to backplane type tested for 60 s @ 720V DC, I/Os to backplane
  • Mounting torque: 0.2 nm
  • Nonoperating temperature: 40 to 85 ¡ãC
  • North American temperature code: T4
  • Number of digital inputs: 4
  • Number of digital outputs: 4
  • Number of I/O: 4 channel inputs/sink outputs combination
  • Off-state current, max: 1.5 mA
  • Off-state leakage current, max: 10 ¦ÌA
  • Off-state voltage, max: 5V DC @ 3.5V AC (rms)
  • ON-state current, max: 5 mA
  • On-state current, min: 2.0mA @ 9V DC, 2.0mA @ 9V AC (rms)
  • On-state current, nom: 3.0mA @ 24V DC
  • On-state current, output: Steady state: 0.5 A maximum
  • ON-state voltage, max: 30V DC @ 30V AC (rms)
  • On-state voltage, min: 9.0V DC @ 10.25V AC (rms)
  • On-state voltage, output: 24V DC nominal
  • Operating temperature: -20 to 65 ¡ãC
  • Power supply voltage: 10.8V DC, minimum, 30V DC, maximum
  • Redundancy: false
  • Relative humidity: 5...95% noncondensing
  • Shock: Operating: 25 g
  • SIL according to IEC 61508: None
  • Status indicator: 8 yellow
  • Surrounding air temperature, max: 65 ¡ãC
  • Terminal base screw torque, max: 0.22...0.25 Nm (1.95...2.21 in-lb) (using a 2.5 mm (0.10 in.) flat-blade screwdriver)
  • Type of digital output: Transistor
  • Type of electric connection: Screw connection
  • Type of output voltage: DC
  • Type of voltage (input voltage): AC/DC
  • Vibration: 2.0 G @ 10¡­500 Hz
  • Wire size: 0.2... 2.5 mm2 (24...12 AWG) solid or stranded copper wire rated @ 90 ¡ãC (194 ¡ãF), or greater, insulation maximum
