Allen-Bradley

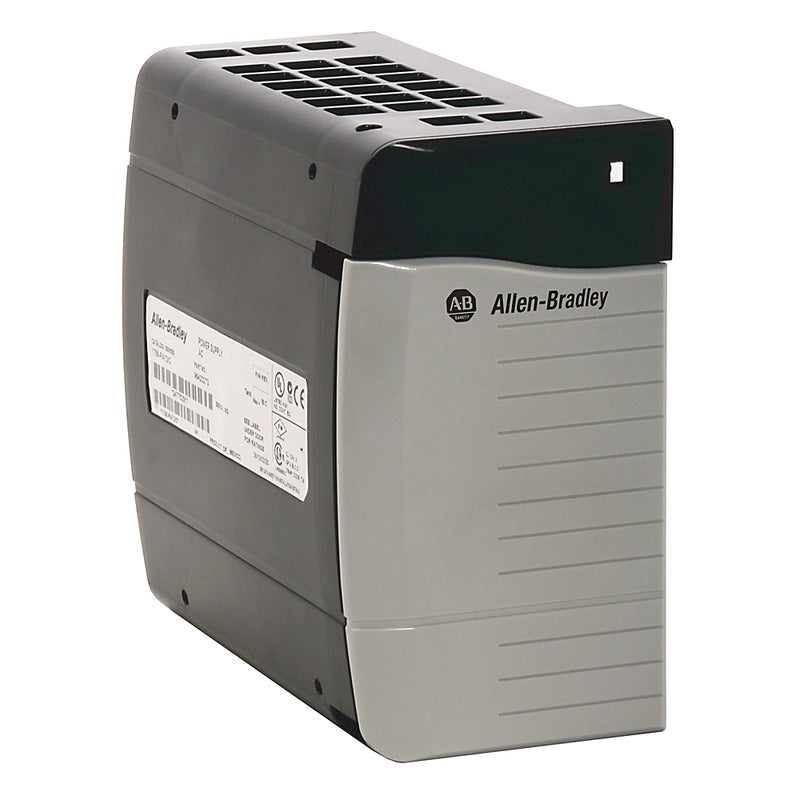

Allen-Bradley 1756-PA50K | Industrial Automation Component

SKU: 1756-PA50K
(1)
$1,504.19
In stock
Usually ships within 24 hours
Factory pre-tested, ready for instant commissioning！

All industrial automation equipment comes complete with standard matching accessories and detailed step-by-step commissioning manuals. Unbox, install and commission your automation projects smoothly with full confidence.

Free shipping
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

Email +86 18017464056

ControlLogix AC Power Supplies

ControlLogix, 85-265V AC Input Power Supply, 8 Amp at 5V DC Output, Conformally coated

Specifications

  • Connection Cables: None required
  • Frequency Rating: 47...63Hz
  • Output Voltage and Current: 5V DC @ 8A, 3.3V DC @ 2A,
  • Redundant Configuration: false
  • Conductor screw torque: 0.565 nm
  • Current capacity: 8A @ 50¡ãC (122 ¡ãF) @ 5.1V DC @ 6A @ 60 ¡ãC (140 ¡ãF) @ 5.1V DC
  • Depth: 145 mm
  • Enclosure type rating: None (open-style)
  • Height: 140 mm
  • Hold-up time: 4 cycles @ 85...265V AC @ 50/60Hz, 60 W, 5 cycles @ 85...265V AC @ 50/60Hz, 50 W
  • Input frequency: 47 Hz
  • Input power, max: 81 W/91VA @ 50 ¡ãC (122 ¡ãF), 68 W/77VA @ 60 ¡ãC (140 ¡ãF)
  • Input voltage at AC 50 Hz: 85 V
  • Input voltage at AC 60 Hz: 85 V
  • Input voltage, nom: 120/240V AC
  • Inrush current, max: 20 A
  • ISAGX: false
  • Operating temperature: 0 ¡ãC < Ta < +60 ¡ãC (+32 ¡ãF < Ta < +140 ¡ãF)
  • Output voltage at DC: 5.1 V
  • Power output: 60 W
  • Power output, max: 60 W @ 0...+50 ¡ãC (+32...+122 ¡ãF), 50 W @ 0...+60 ¡ãC (+32...+140 ¡ãF)
  • Redundancy capable: false
  • Relative humidity: 5...95% noncondensing
  • Shock: Operating: 30 G
  • Suitable for safety functions: false
  • Type of output voltage: DC
  • Type of voltage (input voltage): AC
  • Vibration: 2 G @ 10...500 Hz
  • Voltage variation: IEC 61000-4-11: 30% dips for 1 period at 0¡ã and 180¡ã on AC supply ports, 60% dips for 5 and 50 periods on AC supply ports, ¡À10% fluctuations for 15 min on AC supply ports, >95% interruptions for 250 periods on AC supply ports
  • Weight: 0.77 kg
  • Width: 78 mm
  • Wire category: 1 - on power ports
  • Wire size: 2.5 mm2 (14 AWG) solid or stranded copper wire rated at 90 ¡ãC (194 ¡ãF), or greater, 1.2 mm (3/64 in.) insulation max
  • Product Series: A
