8V1016-001-2 B&R

Category: Motion control > ACOPOS > Servo drives

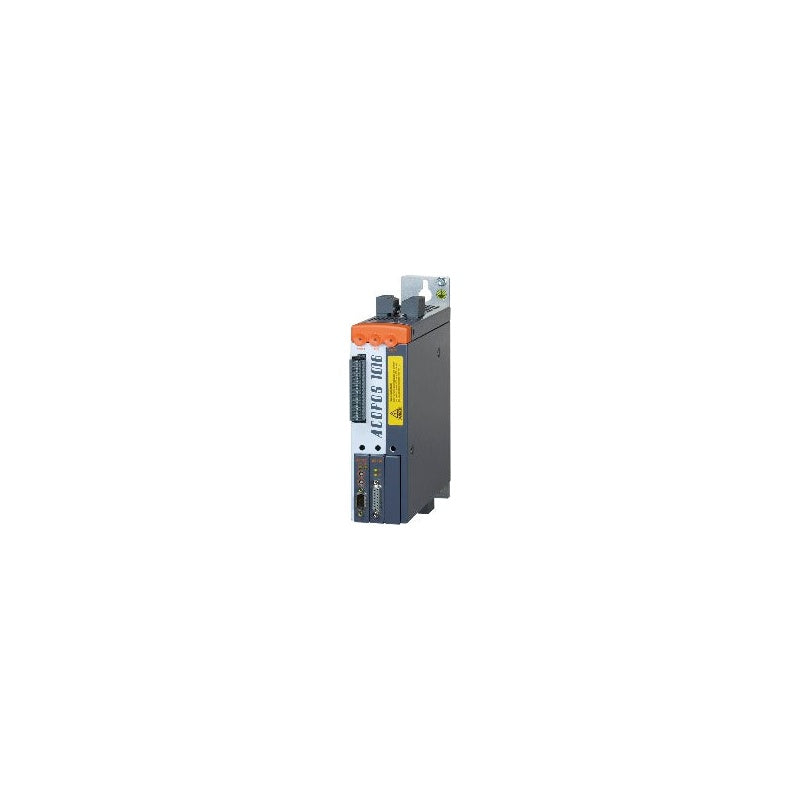

Modular mechanical design using plug-in modules Integrated line filter Integrated braking resistor Integrated electronic restart inhibit Partially-coated circuit boards - more robust in regard to environmental influences ACOPOS servo drive, 3x 400-480 V, 1.6 A, 0.7 kW, coated, integrated line filter, braking resistor and electronic safe restart interlock.

Technical Specifications

General information

• Certifications
• CE = Yes
• UKCA = Yes
• CRA (Cyber Resilience Act) = Non-compliant
• Functional safety = Yes
• UL = cULus E225616 Power conversion equipment
• KC = Yes
• Note = Variant with partially coated printed circuit boards
• B&R ID code = 0xA6D6
• Slots for plug-in modules = 3

Mains connection

• Permissible network configurations = TT, TN
• Mains input voltage = 3x 400 VAC to 480 VAC ±10% 3x 230 VAC ±10%
• Frequency = 50 / 60 Hz ±4%
• Installed load = Max. 2.1 kVA
• Inrush current = 2 A (at 400 VAC)
• Switch-on interval = >10 s
• Integrated line filter per EN 61800-3, category C3 = Yes
• Power dissipation at device nominal power without braking resistor = 110 W

DC bus connection

• DC bus capacitance = 165 µF

24 VDC power supply

• Input voltage = 24 VDC +25% / -20%
• Input capacitance = 5600 µF
• Current consumption = Max. 1.47 A + Current for motor holding brake

Motor connection

• Reduction of continuous current depending on ambient temperature
• Mains input voltage: 400 VAC
• Switching frequency 5 kHz = No reduction
• Switching frequency 10 kHz = No reduction
• Switching frequency 20 kHz = No reduction
• Mains input voltage: 480 VAC
• Switching frequency 20 kHz = 0.13 A eff per °C (starting at 40°C)
• Reduction of continuous current depending on installation elevation
• Starting at 500 m above sea level = 0.16 A eff per 1000 m
• Protective measures
• Overload protection = Yes
• Short-circuit and ground fault protection = Yes
• Terminal connection cross section
• Flexible and fine-stranded wires
• With wire end sleeve = 0.25 to 4 mm²
• Approbation data
• UL/C-UL-US = 30 to 10 AWG
• CSA = 28 to 10 AWG
• Quantity = 1
• Continuous current = 1.6 A eff
• Peak current = 5 A eff
• Nominal switching frequency = 10 kHz
• Possible switching frequencies = 5 / 10 / 20 kHz
• Insulation stress of the connected motor per IEC TS 60034-25:2004 = Limit value curve A
• Max. motor line length = 15 m
• Max. output frequency = 598 Hz

Motor holding brake connection

• Response threshold for open-circuit monitoring = Approx. 245 mA
• Max. output current = 1.3 A
• Max. number of switching cycles = Unlimited since implemented electronically

Braking resistor

• Peak power output = 2 kW
• Continuous power = 130 W

Limit switch and reference inputs

• Electrical isolation
• Input - ACOPOS = Yes
• Input - Input = No
• Input voltage
• Nominal = 24 VDC
• Maximum = 30 VDC
• Switching threshold
• Low = <5 V
• High = >15 V
• Quantity = 3
• Circuit = Sink
• Input current at nominal voltage = Approx. 4 mA
• Switching delay = Max. 2.0 ms
• Modulation compared to ground potential = Max. ±38 V

Enable inputs

• Electrical isolation
• Input - ACOPOS = Yes
• Input voltage
• Nominal = 24 VDC
• Maximum = 30 VDC
• Switching threshold
• Low = <5 V
• High = >15 V
• Switching delay
• Enable 0 → 1, ready for PWM = Max. 100 µs
• Enable 1 → 0, PWM off = Max. 2.0 ms
• Quantity = 1
• Circuit = Sink
• Input current at nominal voltage = Approx. 30 mA
• Modulation compared to ground potential = Max. ±38 V
• OSSD signal connections = Not permitted

Trigger inputs

• Electrical isolation
• Input - ACOPOS = Yes
• Input - Input = No
• Input voltage
• Nominal = 24 VDC
• Maximum = 30 VDC
• Switching threshold
• Low = <5 V
• High = >15 V
• Switching delay
• Rising edge = 52 µs ±0.5 µs (digitally filtered)
• Falling edge = 53 µs ±0.5 µs (digitally filtered)
• Quantity = 2
• Circuit = Sink
• Input current at nominal voltage = Approx. 10 mA
• Modulation compared to ground potential = Max. ±38 V

Electrical properties

• Energy efficiency (IE classification)
• Power dissipation relative to continuous apparent power = IE2 (10,25) 4.6% IE2 (50,25) 4.6% IE2 (10,50) 4.6% IE2 (50,50) 4.6% IE2 (90,50) 4.7% IE2 (10,100) 4.8% IE2 (50,100) 5% IE2 (90,100) 5.2%
• Nominal losses in standby mode = 12.5 W
• Discharge capacitance = 550 nF
