8B0P0440HW00-0001 B&R

Category: Motion control > ACOPOSmulti > Passive power supply modules > Wall mounting

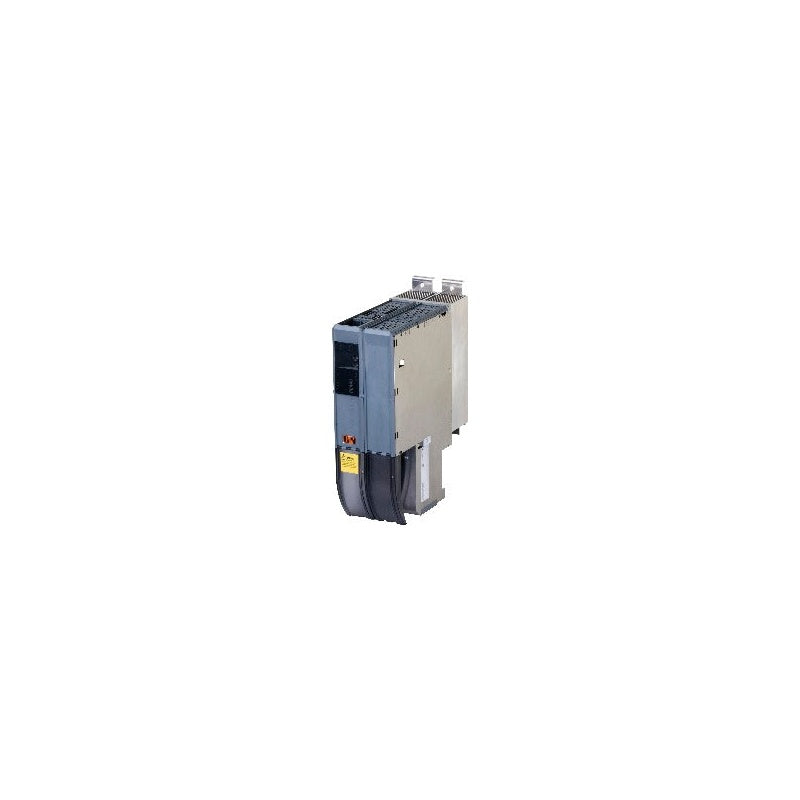

Extensive input voltage range Integrated connection for external braking resistor ACOPOSmulti power supply module passive, 44 A, AS, wall mounting.

Technical Specifications

General information

• Support
• Dynamic node allocation (DNA) = Yes
• Certifications
• CE = Yes
• UKCA = Yes
• CRA (Cyber Resilience Act) = In preparation
• UL = cULus E225616 Power conversion equipment
• KC = Yes
• B&R ID code = 0xA8EA
• Cooling and mounting type = Wall mounting

Mains connection

• Max. chargeable DC bus capacitance depending on mains voltage
• 400 VAC = 14.4 mF
• 480 VAC = 10 mF
• Execution
• L1, L2, L3, PE = Connector
• PE = M5 threaded bolt
• Shield connection = Yes
• Terminal connection cross section
• Flexible and fine-stranded wires
• With wire end sleeve = 0.5 to 16 mm²
• Approbation data
• UL/C-UL-US = 20 to 6 AWG
• CSA = 20 to 6 AWG
• Network configurations = TT, TN-S, TN-C-S
• Mains input voltage = 3x 380 to 3x 500 VAC ±10%
• Frequency = 50 / 60 Hz ±4%
• Installed load = Max. 30.4 kVA
• Power dissipation with continuous power = Approx. 300 W
• Inrush current at 400 VAC = 10 A
• Switch-on interval = >120 s
• Integrated line filter per EN 61800-3, category C3 = No
• Integrated regeneration choke = No
• Regenerative = No
• Power factor correction (PFC) = No
• Line fuse = Max. 132 A (gG fuses per IEC 60269-1 or Class CC, J, T) Max. 110 A (circuit breaker per EN 60947-2 or UL 489)
• Terminal cable cross section dimension of shield connection = 23 to 35 mm

DC bus connection

• Voltage
• Nominal = 537 to 707 VDC
• Reduction of continuous power depending on mains input voltage
• Mains input voltage <3x 400 VAC = 40 W/V * (400 V - Mains input voltage)
• Reduction of continuous power depending on installation elevation
• Starting at 500 m above sea level = 1.6 kW per 1000 m
• Protective measures
• Overload protection = Yes
• Short-circuit and ground fault protection = No
• Continuous power = 16 kW
• Reduction of continuous power depending on cooling method = In preparation
• Peak power output (supply) = 48 kW
• Power dissipation with continuous power = In preparation
• DC bus capacitance = 1320 µF
• Execution = ACOPOSmulti backplane

24 VDC power supply

• Input voltage = 25 VDC ±1.6%
• Input capacitance = 23.5 µF
• Max. power consumption = 12 W
• Execution = ACOPOSmulti backplane

Motor holding brake connection

• Terminal connection cross section
• Flexible and fine-stranded wires
• With wire end sleeve = 0.5 to 6 mm²
• Approbation data
• UL/C-UL-US = 20 to 8 AWG
• CSA = 20 to 8 AWG

Braking resistor

• Execution
• RB+, RB-, PE = Connector
• Shield connection = Yes
• Protective measures
• Overload protection = Yes
• Short-circuit and ground fault protection = Yes (with RB+ by externally replaceable melting fuse)
• Peak power output = 65 kW (max. 1 s)
• Continuous power = 3 kW
• Min. braking resistance = 7.5 Ω
• Rated current of built-in fuse = 30 A (fast-acting)
• Terminal cable cross section dimension of shield connection = 23 to 35 mm

Electrical properties

• Energy efficiency (IE classification)
• Power dissipation relative to continuous apparent power = IE2 (10;25) 0.2% IE2 (50;25) 0.3% IE2 (10;50) 0.2% IE2 (50;50) 0.3% IE2 (90;50) 0.6% IE2 (10;100) 0.3% IE2 (50;100) 0.6% IE2 (90;100) 1.3%
• Nominal losses in standby mode = 6 W
• Discharge capacitance = 0.9 µF

Operating conditions

• Permissible mounting orientations
• Hanging vertically = Yes
• Horizontal, face up = Yes
• Standing horizontally = No
• Installation elevation above sea level
• Nominal = 0 to 500 m
• Maximum = 4000 m
• Pollution degree per EN 61800-5-1 = 2 (non-conductive pollution)
• Overvoltage category per EN 61800-5-1 = III
• Degree of protection per EN 60529 = IP20

Ambient conditions

• Temperature
• Operation
• Nominal = 5 to 40°C
• Maximum = 55°C
• Storage = -25 to 55°C
• Transport = -25 to 70°C
• Relative humidity
• Operation = 5 to 85%
• Storage = 5 to 95%
• Transport = Max. 95% at 40°C
