Category: Motion control > ACOPOS > Plug-in modules

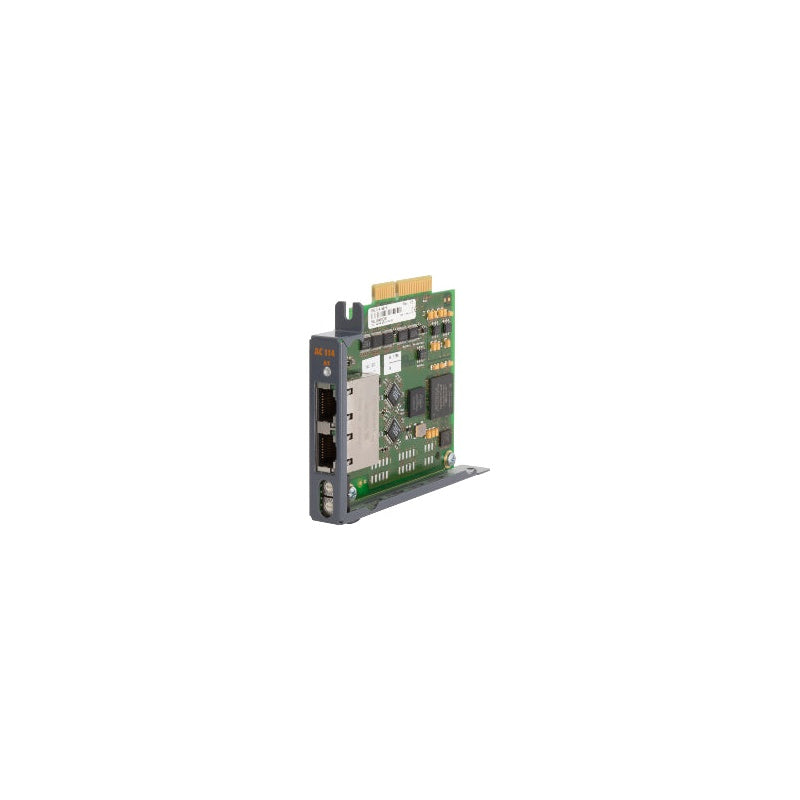

POWERLINK interface for installation in ACOPOS servo drives Integrated 2-port hub for easy wiring For communication and configuration of ACOPOS servo drives in complex and time-critical applications Node number configurable using switch ACOPOS plug-in module, POWERLINK V2 interface.

Technical Specifications

General information

  • Support
  • Dynamic node allocation (DNA) = No
  • Certifications
  • CE = Yes
  • UKCA = Yes
  • CRA (Cyber Resilience Act) = Non-compliant
  • UL = cULus E225616 Power conversion equipment
  • KC = Yes
  • Module type = ACOPOS plug-in module
  • B&R ID code = 0xA5C1
  • Slot = Slot 1
  • Power consumption = Max. 3 W

Interfaces

  • POWERLINK
  • Watchdog functionality
  • Hardware = Yes (via ACOPOS servo drive)
  • Software = Yes (via ACOPOS servo drive)
  • Quantity = 1
  • Module-side connection = 2x RJ45 port
  • Status indicators = Status LED + 2x Link LED
  • Transfer rate = 100 Mbit/s
  • 2-port hub = Yes
  • Possible station operating modes = Synchronous to the POWERLINK cycle
  • Electrical isolation = Yes
  • Cabling topology = Star or tree with level 2 hubs
  • Maximum number of hub levels = 10
  • Line length = Max. 100 m between two stations (segment length)
  • Network-capable = Yes

Ambient conditions

  • Temperature
  • Operation
  • Nominal = 5 to 40°C
  • Maximum = 55°C
  • Storage = -25 to 55°C
  • Transport = -25 to 70°C
  • Relative humidity
  • Operation = 5 to 85%
  • Storage = 5 to 95%
  • Transport = Max. 95% at 40°C
